Hirose Electric Slim Relay/DIP Connector DF62 Series Wire Harness. The product in the image uses DF62B-6EP-2.2C for the relay plug housing, DF62-EP2428PCF for the contacts, and UL1061 AWG26 for the cable. The cable is protected with a vinyl tube.

◇Plug housing Standard type
Mold color: Black
DF62B-2EP-2.2C / DF62B-3EP-2.2C / DF62B-4EP-2.2C / DF62B-5EP-2.2C
DF62B-6EP-2.2C / DF62B-7EP-2.2C / DF62B-13EP-2.2C / DF62B-24EP-2.2C
Mold color: White
DF62B-2EP-2.2C(10) / DF62B-3EP-2.2C(10) / DF62B-4EP-2.2C(10) / DF62B-5EP-2.2C(10)
DF62B-6EP-2.2C(10) / DF62B-7EP-2.2C(10) / DF62B-13EP-2.2C(10) / DF62B-24EP-2.2C(10)

◇Contact
DF62-EP22PCF
DF62-EP2428PCF

◇Manufacturer site
https://www.hirose.com/en/product/series/DF62

JST ultra-small 0.8mm pitch SUH connector wire harness for board-to-wire. The product in the image uses the handle type SUHR-05V-S-B for the housing, SSUH-003T-P0.15 for the contact, and UL3767 AWG28 φ0.6 for the cable. Other cables that can be used include Oki Electric Cable UL1571 AWG28 thin diameter φ0.58 and 1-core robot cable for moving parts UL11527 AWG28 thin diameter φ0.60mm.

◇Housing
With handle:
SUHR-02V-S-B / SUHR-03V-S-B / SUHR-04V-S-B / SUHR-05V-S-B / SUHR-06V-S-B / SUHR-08V-S-B
SUHR-10V-S-B / SUHR-12V-S-B / SUHR-14V-S-B / SUHR-16V-S-B / SUHR-17V-S-B / SUHR-20V-S-B

Without handle:
SUHR-02V-S / SUHR-03V-S / SUHR-04V-S / SUHR-05V-S / SUHR-06V-S
SUHR-10V-S / SUHR-12V-S / SUHR-14V-S / SUHR-16V-S / SUHR-20V-S

◇Contact AWG32-28 φ0.5-0.6
SSUH-003T-P0.15

◇Manufacturer site
https://www.jst-mfg.com/product/detail.php?series=605

◇Oki Electric Cable UL1571 AWG28 Thin diameter φ0.58mm
https://nisho-en.ocnk.net/product/167

◇Oki Electric Cable UL11527 AWG28 Thin diameter Outer diameter 0.60mm For moving parts
https://nisho-en.ocnk.net/product/168

This is a crimp wire harness for the TE D-1000 Series D-1 Receptacle Contact L 1827571-2 / 1827588-2. The product in the image uses the D-1200D Receptacle Housing 1-1827864-3 for the housing, the Receptacle Contact L 1827571-2, and the cable UL2464 AWG23×2P.

◇D-1 Receptacle Contact L
1827571-2 Reel product
https://www.te.com/en/product-1827571-2.html

1827588-2 Individual product
https://www.te.com/en/product-1827588-2.html

Hirose Electric 3A compatible 3.18mm pitch HIF4 connector flat cable harness. The current capacity of the HIF3 series is 1A, while the HIF4 series is 3A, allowing for a wider range of uses. The compatible wire is UL2651 AWG24 (7/0.2) flat cable. The product in the image uses the HIF4-40D-3.18R connector and the OKI Electric Cable sudare type FLEX-S 40-7/0.2 7030 2651 3A flat cable.

◇Connectors
HIF4-16D-3.18R / HIF4-20D-3.18R / HIF4-26D-3.18R
HIF4-34D-3.18R / HIF4-40D-3.18R

◇HRS HIF4 series
https://www.hirose.com/en/product/series/HIF4

◇Oki Electric Cable AWG24 (7/0.2) 3A flat cable FLEX-S **-7/0.2 7030 2651
http://www.okidensen.co.jp/en/prod/cable/flat/3amp_okiflex.html

This is a wire harness for MOLEX SATA connector 67582-0000 (1.27mm pitch housing SATA power cable receptacle 15 poles) and contact 67581-0000. This contact is crimped by adjusting a similar applicator rather than a dedicated applicator. Cables AWG22 to 18 can be used. The product in the image uses UL1007 AWG18 for the cable.

◇Manufacturer site
Housing: 67582-0000
https://www.molex.com/molex/products/part-detail/crimp_housings/0675820000

Contact: 67581-0000
https://www.molex.com/molex/products/part-detail/crimp_terminals/0675810000

This is a wire harness for the JST 1.5mm pitch strong lock connector ZE series. The product in the image uses ZER-08V-S for the housing, SZE-002T-P0.3 for the contacts, and OKI Electric Wire ORP-I 0.2SQ (AWG25 40/0.08, insulator outer diameter 1.0mm) for the cable. OKI Electric Wire ORP-I cable is UL11502 105℃ 600V. It is a flexible wire that can be used in moving parts, etc.

◇Housing:
ZER-02V-S / ZER-03V-S / ZER-04V-S / ZER-05V-S / ZER-06V-S
ZER-07V-S / ZER-08V-S / ZER-09V-S / ZER-10V-S / ZER-11V-S
ZER-12V-S / ZER-13V-S / ZER-14V-S / ZER-15V-S / ZER-16V-S

◇Contact
SZE-002T-P0.3　AWG28～24　0.76～1.2mm

◇JST　ZE connector
https://www.jst-mfg.com/product/index.php?series=470

◇Oki Electric Cable ORP-I cable
https://www.okidensen.co.jp/en/prod/cable/robot/

This is a wire harness for the MOLEX 2.5mm pitch board-to-wire connector 5051 series. The product in the image uses 22-01-1022 (5051-02) for the housing, 39-00-0380 (2759PBG) for the contacts, and UL1007 AWG24 for the cable.

◇Housing
22-01-1022 / 22-01-1032 / 22-01-1042 / 22-01-1052 / 22-01-1062
22-01-1072 / 22-01-1082 / 22-01-1092 / 22-01-1102 / 22-01-1112
22-01-1122 / 22-01-1132 / 22-01-1142 / 22-01-1152

5051-02 / 5051-03 / 5051-04 / 5051-05 / 5051-06 / 5051-07 / 5051-08
5051-09 / 5051-10 / 5051-11 / 5051-12 / 5051-13 / 5051-14 / 5051-15

◇Contact
39-00-0380 (2759PBG) 　　AWG22～28

◇Manufacturer site
22-01-1022 (5051-02)
https://www.molex.com/en-us/products/part-detail/22011022

39-00-0380 (2759PBG)
https://www.molex.com/en-us/products/part-detail/39000380

Hanshin Electric Wire Robot Cable for Wiring Moving Parts MRC UL20276 Shielded and Unshielded are sold at our shop in fixed lengths of 100m and cut lengths of 1m and up. The product in the image is MRC UL20276 AWG24×4C. Please visit the product page to purchase.

◇Manufacturer's website
http://www.hanshin-cable.co.jp/english/index.html

◇Product page
MRC UL20276 30V 80℃ Unshielded
https://nisho-en.ocnk.net/product-list/81

MRC UL20276 30V 80℃ Shielded (SB)
https://nisho-en.ocnk.net/product-list/82

MRC UL20276 AWG24×4C

◇Catalog
★ Cable for fixed wiring (thin type)
UL20276SR-SB (twisted pair type)
UL2464SR-SB (twisted pair type)

★ Cable for fixed wiring
UL20276
UL20276-SB
UL20276 (twisted pair type)
UL20276-SB (twisted pair type)
UL2464
UL2464-SB
UL2501
UL2501-SB
CE/UL2517
CE/UL2517-SB
CE/UL2501
CE/UL2501-SB

★ Cable for moving parts (robot cable)
MRC UL20276
MRC UL20276-SB
MRC UL20276 (twisted pair type)
MRC UL20276-SB (twisted pair type)
MRC UL2464
MRC UL2464-SB
MRC UL2501
MRC UL2501-SB
MRC CE/UL2517
MRC CE/UL2517-SB
MRC CE/UL2501
MRC CE/UL2501-SB

KORATECH is a Korean FFC manufacturer established in 1999. All products are RoHS and REACH compliant. ISO 9001 and 14001 certified. Koratech's selling points are the following three points. Small quantity (from about 100 sheets). Short lead time (average less than 3 weeks), multiple international certifications such as UL. Please refer to the catalog for the FFC model number and specify it from the ordering information (FFC Ordering Information) below. The FFC in the image is a 1.0mm pitch 15-core P7 type with aluminum shield.

◇Manufacturer website
http://www.koratech.co.kr/

◇Pitch
0.3mm / 0.5mm / 0.8mm / 1.0mm / 1.25mm / 1.27mm / 2.0mm / 2.54mm

◇FFC Ordering Information
Pitch x Number of cores x Total length x (stripping length at both ends, reinforcing tape length at both ends) x Conductor size (thickness x width) x Cable type

◇Catalog

◇Company profile

JST 1.8mm pitch SFK connector wire harness. SFK connectors are high-voltage wire-to-board connectors used for LED LCD TV backlight power supplies. The product in the image uses SFKR-02V-S for the housing, SSFH-001T-P0.5 for the contacts, and UL1061 AWG22 for the cable.

◇Housing
SFKR-02V-S

◇Contact
SSFH-001T-P0.5　AWG26～22　Insulator outer diameter φ0.95～1.3mm
SSFH-002T-P0.5　AWG30～26　Insulator outer diameter φ0.70～1.25mm

◇Manufacturer site
https://www.jst-mfg.com/product/index.php?series=669

OKI Electric Cable's highly flexible robot cable, ORP series, is sold in 10m units at our shop. ORP cable is an FA robot cable that uses a special elastomer insulating material and has excellent flexibility and flexibility. It is suitable for industrial robots, automatic machine tools, and other applications that require high levels of flex resistance, twisting resistance, and sliding resistance. The product in the image is ORP 0.5SQ×15P(SB). Please order from the product page below.

◇Product
UL2464 (80℃, 300V)
Size: 0.2SQ, 0.3SQ, 0.5SQ
Number of pairs: 1P to 20P
Shielded/Unshielded

◇Product page
ORP Shielded (SB)
https://nisho-en.ocnk.net/product-list/42

ORP Unshielded
https://nisho-en.ocnk.net/product-list/43

◇Manufacturer site
https://www.okidensen.co.jp/en/prod/cable/robot/

ORP 0.5SQ×15P(SB)

This is a cable harness for the DDK solder type DSUB connector 17JE series. The number of poles is 9 cores, 15 cores, 25 cores, and 37 cores. The cable is a twisted type of AWG22 or less. The screws are metric screws M2.6 x 0.45 (standard), M3 x 0.5, and inch screws #4-40UNC. The product in the image uses 17JE-13250-02 (D8A) A-CG for the connector and Nikko Electric Wire Industry NSKVG 0.2SQ x 16C for the cable. Nikko Electric Wire Industry NSKVG is a cable with excellent flexibility and bendability, non-migratory properties, heat and cold resistance +90℃ to -35℃, and oil resistance.

◇Product name reference
Socket connector
17JE-13090-02 / 17JE-13150-02 / 17JE-13250-02 / 17JE-13370-02

Pin connector
17JE-23090-02 / 17JE-23150-02 / 17JE-23250-02 / 17JE-23370-02

◇DDK 17JE Manufacturer site
https://www.ddknet.co.jp/English/products/rectangular/17JE/index.html

◇Nikko Electric Wire Industries NSKVG Product page
https://nisho.ocnk.net/product-list/371

JAE 2.54mm pitch, 2-row type, MIL-DTL-83503 compliant FRC pressure-welded type PS connector flat cable harness. The product in the image uses the daisy chain type PS-40SM-D4P1-1D connector, PS-SR40M2 relief, and OKI Electric Cable flat cable bridge type FLEX-B 40-7/0.127 2651P cable.

◇Connector
Closed end type: PS-**SM-D4P1-1C
PS-10SM-D4P1-1C / PS-16SM-D4P1-1C / PS-20SM-D4P1-1C
PS-26SM-D4P1-1C / PS-30SM-D4P1-1C / PS-34SM-D4P1-1C
PS-40SM-D4P1-1C / PS-50SM-D4P1-1C / PS-60SM-D4P1-1C

Daisy chain type: PS-**SM-D4P1-1D
PS-10SM-D4P1-1D / PS-16SM-D4P1-1D / PS-20SM-D4P1-1D
PS-26SM-D4P1-1D / PS-30SM-D4P1-1D / PS-34SM-D4P1-1D
PS-40SM-D4P1-1D / PS-50SM-D4P1-1D / PS-60SM-D4P1-1D

Relief: PS-SR**M2
PS-SR10M2 / PS-SR16M2 / PS-SR20M2
PS-SR26M2 / PS-SR30M2 / PS-SR34M2
PS-SR40M2 / PS-SR50M2 / PS-SR60M2

◇Manufacturer site
https://www.jae.com/en/connectors/series/detail/id=64317&type_code=T1040

MOLEX 1.25mm pitch PicoBlade(TM) housing 51021 wire harness. The product in the image uses 51021-1200 for the housing, 50079-8000 for the contacts, and UL1061 AWG28 for the cable.

◇Housing
51021-0200 / 51021-0300 / 51021-0400 / 51021-0500 / 51021-0600
51021-0700 / 51021-0800 / 51021-0900 / 51021-1000 / 51021-1100
51021-1200 / 51021-1300 / 51021-1400 / 51021-1500

◇Contact
50058-8000 (reeled product) / 50058-8100 (loose product) AWG28-32 φ0.5-1.0
50079-8000 (reeled product) / 50079-8100 (individual item) AWG26-28 φ0.5-1.04

◇Manufacturer's website
https://www.molex.com/en-us/content-search-results?search_query=51021&tab=product
https://www.molex.com/en-us/products/part-detail/500588000
https://www.molex.com/en-us/products/part-detail/500798000

MOLEX 3.96mm pitch SPOX housing 5195-** (09501**1) wire harness. Cables can be AWG24-18, with insulator outer diameters of φ1.3-3.2. The product in the image uses 5195-04 (09501041) for the housing, 5194T (08701031) for the contacts, and UL1007 AWG20 for the cable.

◇Housing
2 poles 09501021 5195-02
3 poles 09501031 5195-03
4 poles 09501041 5195-04
5 poles 09501051 5195-05
6 poles 09501061 5195-06
7 poles 09501071 5195-07
8 poles 09501081 5195-08
9 poles 09501091 5195-09
10 poles 09501101 5195-10

◇Contacts Tin plated Brass
08701031 5194T Reel
08701030 5194TL Loose

◇Manufacturer site
https://www.molex.com/en-us/part-list/5195
https://www.molex.com/en-us/products/part-detail/08701031

Ninomiya Electric Wire Industry Vinyl-coated thermocouple wire Vinyl (PVC) G Maximum operating temperature: 90℃. This is a flat-coated thermocouple wire with vinyl insulation on each pair of thermocouple conductors and vinyl sheath. Vinyl is the most common insulating material and has excellent electrical properties, water resistance, and mechanical properties. We sell it in units of 1 roll = 100m at our shop. Standard delivery time is about one week. The product in the image is 0.1 x 1P T-2-G-J2 (T-G). Please order from the address link below.

◇Manufacturer site
https://ninomiya-ew.co.jp/en/product/tcw_g/

◇Product page
https://nisho-en.ocnk.net/product-list/126

　

0.1×1P T-2-G-J2 (T-G)

This is a wire harness for the JST 1.3mm pitch ADH connector. The ADH connector is a small, low-profile connector with a depth of 4.3mm and a mounting height of 1.9mm. The product in the image uses the ADHR-03V-S housing, the SADH-002G-P0.2 contacts, and the UL1061 AWG26 cable.

◇Housing
ADHR-03V-S / ADHR-03V-S(HF) / ADHR-03V-H / ADHR-05V-S(HF)

◇Contact
SADH-003G-P0.2 AWG28 (0.08mm2) Φ0.63mm
SADH-002G-P0.2 AWG26 (0.14mm2) Φ0.98mm

◇Manufacturer's website
https://www.jst-mfg.com/product/index.php?series=628

JST 2.0mm pitch relay connection type PAL connector wire harness. PAL connectors are available in two types: PALR-**VF (no panel lock type) and PALR-**V (with panel lock type). The product in the image uses PALR-02VF (no panel lock type) for the housing, SPAL-002T-P0.5 for the contacts, and UL1571 AWG24 for the cable.

◇Housing
No panel lock:
PALR-02VF / PALR-03VF / PALR-04VF / PALR-05VF / PALR-06VF / PALR-07VF / PALR-08VF

With panel lock:
PALR-02V / PALR-03V / PALR-04V / PALR-06V / PALR-07V / PALR-08V

◇Contact
SPAL-001T-P0.5　AWG26～22　Φ1.0～1.5mm
SPAL-002T-P0.5　AWG28～24　Φ0.9～1.5mm

◇Manufacturer's website
https://www.jst-mfg.com/product/index.php?series=193

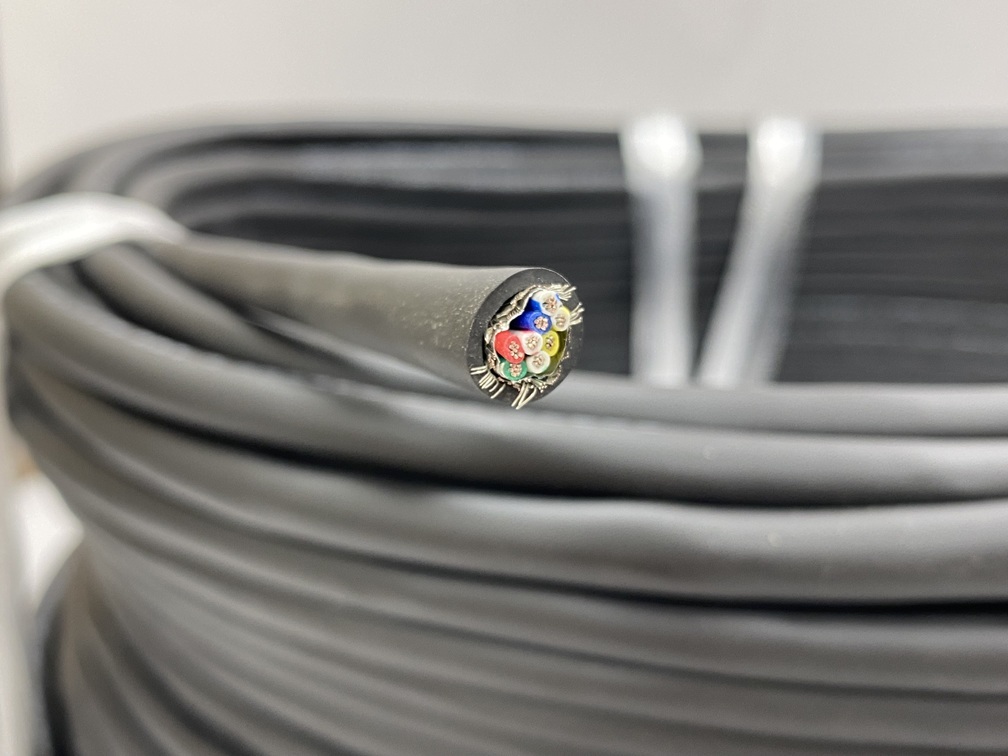

We sell Riken Cable Technology's instrumentation cable UL20276 SKVV-SB in our shop. The sales unit is 100m for all sizes 1P, 2P, and 3P. For 5P or more, it is 1m increments of 10m or more. The standard lead time is about one week. UL20276 SKVV-SB has passed the UL/VW-1 combustion test. The conductor uses tin-plated soft copper stranded wire, making it easy to solder. The insulation is embedded on both sides for identification, preventing incorrect wiring and making wiring work easy. The paired twist structure prevents crosstalk between circuits, and the aluminum laminate tape and tin-plated soft copper wire shield reduce noise. This is a low-power circuit cable used for internal wiring of computers, measuring equipment, office equipment, and communication equipment, and for connecting between devices. Please visit the product page below to purchase.

Sales unit: All sizes 1P, 2P, 3P are sold in 100m increments / 5P or more are sold in 1m increments of 10m or more
Size: AWG24 (7/0.18), AWG22 (7/0.26), AWG20 (7/0.32)

UL20276 Rating: 80℃ 30V
Conductor: Tin-plated soft copper wire
Insulation: Heat-resistant vinyl, primary color + embedded line identification
Shield: Aluminum laminate tape + tin-plated soft copper wire braid, with drain wire
Sheath: Soft vinyl, matte black, heat-resistant and flame-retardant

◇Manufacturer's site
http://www.rikencabletechnology.co.jp/cable20276.html

◇Product page
https://nisho-en.ocnk.net/product-list/111

UL20276 SKVV-SB AWG22(7/0.26)×4P

Dyden Robotop DP 300V UL2517 DPC3/2517 (up to 7C), DPN3/2517 (8C or more) Unshielded, some products are sold in our shop. Standard delivery time is about one week. Sales units are 10m or more in 5m increments. Please purchase from the product page below.

◇Manufacturer site
https://cable.dyden.co.jp/products/786/
https://www.dyden.jp/robotcable/list/robotop_dp/

◇Product page
https://nisho-en.ocnk.net/product-list/91

Compliant standards
＜DP3＞
UL758(Appliance Wiring Material) -2517(105℃, 300V)
CSA(CC22.2 No210.2) - (105℃, 300V)
Specific electrical equipment/heat-resistant and earthquake-resistant vinyl cab tire cord (75℃, 300V)

Robotop DPC3/2517 AWG18(0.75SQ)×4C
