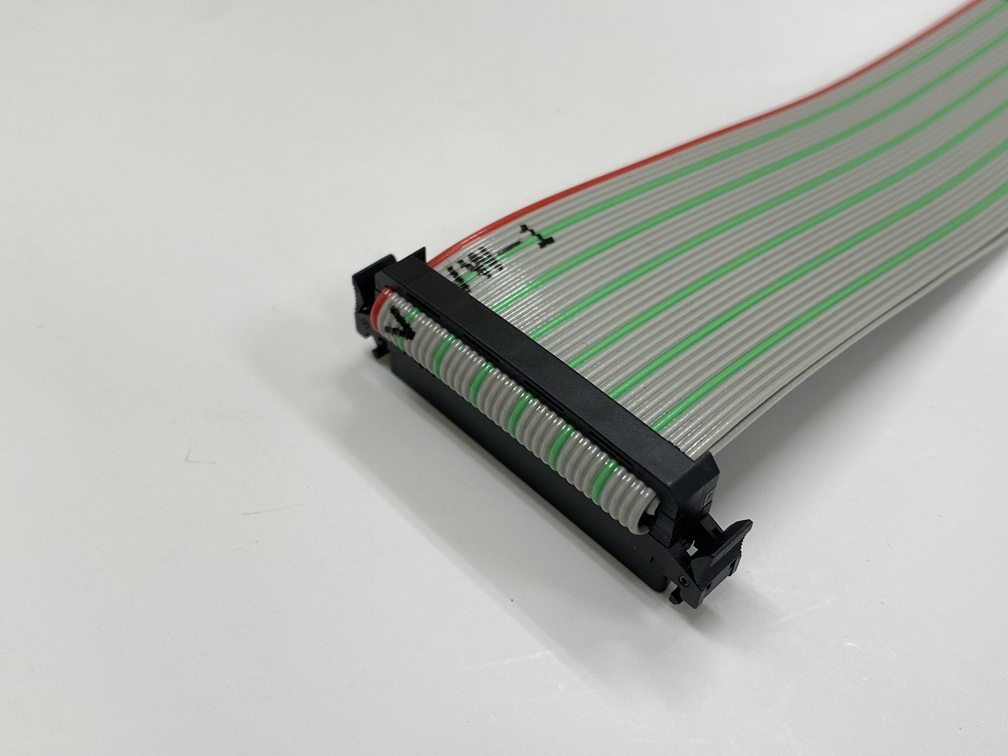

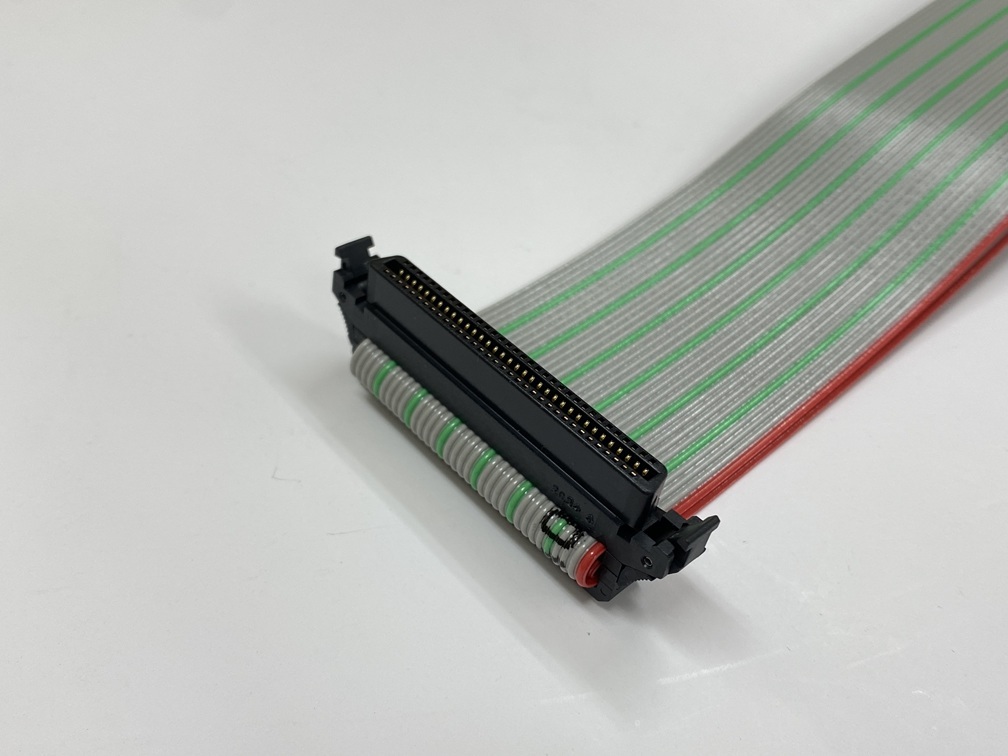

This is a flat cable harness for KEL’s 8925E / 8925R series of half-pitch (1.27 mm pitch) low-profile connectors. The product shown in the image features the 8925E-100-179-F connector with strain relief and uses Oki Electric Cable’s half-pitch (0.635 mm pitch) flat cable, bridge type FLEX-B2 100-7/0.1 20028.

◇ Connectors
With strain relief:
8925E-020-179-F / 8925E-030-179-F / 8925E-040-179-F / 8925E-050-179-F
8925E-060-179-F / 8925E-068-179-F / 8925E-080-179-F / 8925E-100-179-F

Without strain relief:
8925R-020-179-F / 8925R-030-179-F / 8925R-040-179-F / 8925R-050-179-F
8925R-060-179-F / 8925R-068-179-F / 8925R-080-179-F / 8925R-100-179-F

◇KEL 8925E series
https://www.kel.jp/product/product_detail/id=490&p_cont=49

◇Oki Electric Cable 0.635mm half pitch Okiflex (UL20028)
https://www.okidensen.co.jp/en/prod/cable/equip/flat/koumitsudo_okiflex.html








Kurabe’s SIEGER Wire 600V REH-GG (LKGB) is a silicone rubber-insulated, double-braided glass-fiber-reinforced cable featuring excellent heat resistance and durability. While “LKGB” is the standard designation, Kurabe uses “REH-GG” as the product model number; however, in current product specifications, it is integrated and managed under the same specification system as “REH-GG (LKGB).”

The structure of this product consists of a conductor made of tin-plated soft copper wire as specified in JIS C 3152, covered with silicone rubber insulation. This is surrounded by a double braid of alkali-free glass yarn compliant with JIS R 3413, and finished with a heat-resistant shaping agent and varnish. This double-braided glass structure enhances mechanical strength and provides durability against heavy use and external stress. The rated voltage is 600 V AC, and the continuous heat resistance range under no-load conditions is from -60°C to 180°C. Conductor sizes range from 0.5 mm² to 250 mm², with finished outer diameters ranging from 4.2 mm to 30.8 mm, and a one-minute test voltage ranging from 2,000 V AC to 3,000 V AC. Furthermore, products in the 0.75 mm² to 100 mm² size range are compliant with the Electrical Appliance and Material Safety Law (PSE).

Primary applications include lead-out wires for electrical equipment—such as electric motors and generators—as well as internal wiring within such equipment. The main target industries and application fields span a wide range, including industrial machinery, home appliances, residential equipment, information and communications equipment, medical equipment, and other sectors. Our online store offers lengths from 0.75SQ to 325SQ, sold in 1-meter increments starting from 10 meters. As these are special-order items, delivery takes 3–4 days. Please place your order via the product page below.

◇Manufacturer Websites
https://www.kurabe.co.jp/en/product/material/material_silicone/66/
https://www.kurabe.co.jp/en/product/material/material_silicone/68/

◇Product Page
https://nisho-en.ocnk.net/product-list/143





600V REH-GG (LKGB) White 5.5SQ(35/0.45)








We sell Oki Electric Cable’s TPFLEX twisted-pair flat cable (1.27 mm pitch) in our store in units of 1 roll = 30.5 m. TPFLEX features a twisted-pair structure, in which two conductors are twisted together to provide noise immunity and reduce crosstalk. The fusion-splicing section is 50 mm, and the non-fusion-splicing section is 200 mm. Colors available include the standard type, TPFLEX-N, and the colored type, TPFLEX-N4. Please place your order via the product page.

◇Product
TPFLEX-N **P-7/0.127-250
Red-Gray-Gray-Gray-Green... 1st conductor = Red, 5nth conductor = Green, Others = Gray

TPFLEX-N4 **P-7/0.127-250
Brown-Red-Orange-Yellow-Green-Blue-Purple-Gray-White-Black... (repeats 10 colors)

◇Manufacturer site
https://www.okidensen.co.jp/en/prod/cable/flat/twist591_okiflex.html

◇Product page
https://nisho-en.ocnk.net/product-list/23





TPFLEX-N 17P-7/0.127-250






This is a flat cable harness featuring JAE’s 2.54 mm pitch, MIL-DTL-83503-compliant IDC connectors from the PS series. The product shown in the image uses a closed-end type PS-20SM-D4P1-1C connector, a PS-SR20M2 strain relief, and Oki Electric Cable’s bridge-type flat cable FLEX-B 20-7/0.127 2651P.

◇Connectors
Closed-end type: PS-**SM-D4P1-1C
PS-10SM-D4P1-1C / PS-16SM-D4P1-1C / PS-20SM-D4P1-1C
PS-26SM-D4P1-1C / PS-30SM-D4P1-1C / PS-34SM-D4P1-1C
PS-40SM-D4P1-1C / PS-50SM-D4P1-1C / PS-60SM-D4P1-1C

Daisy Chain Type: PS-**SM-D4P1-1D
PS-10SM-D4P1-1D / PS-16SM-D4P1-1D / PS-20SM-D4P1-1D
PS-26SM-D4P1-1D / PS-30SM-D4P1-1D / PS-34SM-D4P1-1D
PS-40SM-D4P1-1D / PS-50SM-D4P1-1D / PS-60SM-D4P1-1D

Relief: PS-SR**M2
PS-SR10M2 / PS-SR16M2 / PS-SR20M2
PS-SR26M2 / PS-SR30M2 / PS-SR34M2
PS-SR40M2 / PS-SR50M2 / PS-SR60M2

◇Manufacturer Websites
JAE PS Series
https://products.jae.com/gl/en/connectors/category/board-to-cable/ps-mil/

Oki Electric Cable: Bridge-Type OkiFlex
https://www.okidensen.co.jp/en/prod/cable/equip/flat/bridge_okiflex.html









We sell Proterial (formerly Hitachi Metals) Fronrex Wire 600V LFF Black by the meter at our store. Available sizes include 0.5SQ, 0.75SQ, 1.25SQ, 2SQ, 3.5SQ, 5.5SQ, 8SQ, 14SQ, 22SQ, and 38SQ. Standard delivery takes 2–3 days. Rated: 200℃, 600V. This wire offers excellent heat resistance, flexibility, oil resistance, and flame retardancy. The product shown in the image is a 600V LFF 8SQ.Please visit the product page below to make your purchase.

◇Product page
https://nisho-en.ocnk.net/product-list/109





600V LFF 8SQ Black







This is a wire harness for Omron’s XG5 Series of 2.54 mm pitch, MIL-spec compliant crimp sockets for individual wires. The product shown in the image uses the XG5N-341 housing, the XG5W-0231-R contacts, and UL1571 AWG30 wire. The UL1571 AWG30 wire is a non-standard crimp.

◇Housings
Lockable Sockets (Set Model Numbers)
XG5N-100-U / XG5N-101-U / XG5N-141-U / XG5N-161-U / XG5N-201-U
XG5N-261-U / XG5N-301-U / XG5N-341-U / XG5N-401-U / XG5N-501-U
XG5N-502-U / XG5N-601-U / XG5N-602-U / XG5N-641-U / XG5N-642-U

Socket Housing
XG5N-100 / XG5N-101 / XG5N-141 / XG5N-161 / XG5N-201
XG5N-261 / XG5N-301 / XG5N-341 / XG5N-401 / XG5N-501
XG5N-502 / XG5N-601 / XG5N-602 / XG5N-641 / XG5N-642

◇Contacts
XG5W-0231  Loose
XG5W-0231-R Reel

◇Manufacturer’s Website
https://components.omron.com/us-en/products/connectors/XG5-Crimped-MIL-Connector-Sockets-for-Discrete-Wires-









This is a flat cable harness for KEL’s 1.27 mm pitch (half-pitch) IDC connector 8825E / 8825R series. The product shown in the image features the 8825E-034-175-F connector with strain relief and uses Oki Electric Cable’s 0.635mm pitch (half-pitch) flat cable, bridge type FLEX-B2 34-7/0.1 20028.

◇Connectors
With strain relief:
8825E-020-175-F / 8825E-026-175-F / 8825E-030-175-F / 8825E-032-175-F
8825E-034-175-F / 8825E-040-175-F / 8825E-050-175-F / 8825E-060-175-F
8825E-068-175-F / 8825E-080-175-F / 8825E-100-175-F

Without strain relief:
8825R-020-175-F / 8825R-026-175-F / 8825R-030-175-F / 8825R-032-175-F
8825R-034-175-F / 8825R-040-175-F / 8825R-050-175-F / 8825R-060-175-F
8825R-068-175-F / 8825R-080-175-F / 8825R-100-175-F

◇KEL 8825E Series
https://www.kel.jp/product/product_detail/id=493

◇OKI Electric Cable 0.635mm Half-Pitch OKIFLEX (UL20028)
https://www.okidensen.co.jp/en/prod/cable/equip/flat/koumitsudo_okiflex.html










This is a flat cable harness for Hirose Electric’s DX Series DX31 bulk crimp-type (for fine wires) connector, model DX31A-**P(50). The product shown in the image uses the DX31A-100P(50) as the plug connector and Oki Electric Cable’s FLEX-S 50-7/0.127 7030 2651P as the flat cable.

◇Connectors
DX31A-20P(50) / DX31A-28P(50) / DX31A-36P(50) / DX31A-50P(50)
DX31A-68P(50) / DX31A-80P(50) / DX31A-100P (50)

◇HRS DX Series
https://www.hirose.com/en/product/series/DX?lang=en








This is a wire harness for JST’s 2.0mm-pitch, 2-row PUD connectors with strong locking mechanism for PCB-to-wire connections. The product shown in the image uses a PUDP-14V-S housing, SPUD-001T-P0.5 contacts, and UL1061 AWG22 wire.

◇ Connectors
PUDP-08V-S / PUDP-10V-S / PUDP-12V-S / PUDP-14V-S / PUDP-16V-S / PUDP-18V-S / PUDP-20V-S
PUDP-22V-S / PUDP-24V-S / PUDP-26V-S / PUDP-28V-S / PUDP-30V-S / PUDP-32V-S / PUDP-34V-S
PUDP-36V-S / PUDP-38V-S / PUDP-40V-S

◇Contacts
SPUD-002T-P0.5  AWG 28–24 φ0.76–1.5
SPUD-001T-P0.5  AWG 26–22 φ0.95–1.5

◇Manufacturer’s Website
https://www.jst-mfg.com/product/index.php?series=471









Hirose Electric [SignalBee™] 1.0mm Pitch Locking Board-to-Cable Connector DF50 Series Wire Harness. The housing is available in double-row and single-row configurations. The product shown in the image uses a DF50S-40DS-1C double-row socket, DF50-2830SCFA contacts, and UL1061 AWG28 wire.

◇ Double-Row Crimp Sockets
DF50S-20DS-1C / DF50S-30DS-1C / DF50S-40DS-1C / DF50S-50DS-1C

◇Single-Row Crimp Sockets
DF50A-2S-1C / DF50A-3S-1C / DF50A-4S-1C / DF50A-5S-1C / DF50A-6S-1C
DF50A-7S-1C / DF50A-8S-1C / DF50A-9S-1C / DF50A-10S-1C / DF50A-11S-1C
DF50A-12S-1C / DF50A-13S-1C / DF50A-14S-1C / DF50A-15S-1C / DF50A-16S-1C

◇Contact
DF50-2830SCFA  AWG 30–28 φ0.80–0.88 mm

◇Manufacturer’s Website
https://www.hirose.com/en/product/series/DF50








Taisei Mfg nylon sleeves are available for purchase in bundles of 100m at our shop. Sizes available are 6mm, 8mm, 10mm, 15mm, 20mm, 25mm, 30mm, and 40mm. Standard delivery time is 2-3 days. Made from braided high-quality nylon fibers, these flexible and versatile bundling and protection tubes can be used both inside and outside equipment. They are suitable for bundling and protecting wire harnesses, automated machinery, and moving parts of electrical equipment. Please place your order via the product page below.

◇Manufacturer's site
https://www.taisei-mfg.co.jp/sleeve02.html

◇Product page
https://nisho-en.ocnk.net/product-list/68





NY-8








Hirose Electric [SignalBee™] 1.0mm Pitch Locking Board-to-Cable Connector DF50 Series Wire Harness. The housing is available in double-row and single-row configurations. The product shown in the image uses a DF50A-10S-1C single-row socket, DF50-2830SCFA contacts, and UL1061 AWG28 wire.

◇ Double-Row Crimp Sockets
DF50S-20DS-1C / DF50S-30DS-1C / DF50S-40DS-1C / DF50S-50DS-1C

◇Single-Row Crimp Sockets
DF50A-2S-1C / DF50A-3S-1C / DF50A-4S-1C / DF50A-5S-1C / DF50A-6S-1C
DF50A-7S-1C / DF50A-8S-1C / DF50A-9S-1C / DF50A-10S-1C / DF50A-11S-1C
DF50A-12S-1C / DF50A-13S-1C / DF50A-14S-1C / DF50A-15S-1C / DF50A-16S-1C

◇Contact
DF50-2830SCFA  AWG 30–28, φ0.80–0.88 mm

◇Manufacturer’s Website
https://www.hirose.com/en/product/series/DF50








1. Executive Series Overview and Comparative Analysis

The OKI ORP High-Flex Robot Cable series represents a pinnacle in electromechanical interconnect technology, specifically engineered for the high-cycle environments of modern industrial automation. This product line utilizes a proprietary special elastomer insulation coupled with an oil-resistant PVC jacket to ensure structural integrity across sliding, swinging, and twisting vectors.

As a matter of engineering strategy, the series offers a critical trade-off between profile and mechanical longevity. The ORP-30F series prioritizes extreme miniaturization (up to 32% diameter reduction) for internal equipment wiring, albeit with a lower mechanical threshold of 50M sliding cycles. In contrast, the ORP-SL, ORP Standard, and ORP-D series are the workhorses of the lineup, offering a superior mechanical lifespan of 100M sliding cycles and 20M swinging/torsion cycles, designed for high-intensity robot arm and carrier applications.



Master Comparison Table

Cable Series

Primary Feature / Classification

UL Style

Rated Temp / Voltage

Conductor Size Range

Core/Pair Lineup

Mechanical Durability (Sliding / Swinging / Torsion)

ORP-30F

Ultra-Slim (Internal)

21103

105°C / 30V

34 – 22 AWG

2–10 Cores; 2–20 Pairs

50M / 10M / 10M

ORP-SL

Slim High-Flex

2464

80°C / 300V

0.05 – 0.5 mm²

3–15 Cores; 1–20 Pairs

100M / 20M / 20M

ORP-SL 105°C

Slim Heat-Resistant

2517

105°C / 300V

0.05 – 0.5 mm²

3–15 Cores; 1–20 Pairs

100M / 20M / 20M

ORP

Standard High-Flex

2464

80°C / 300V

0.2 – 0.5 mm²

1 – 20 Pairs

100M / 20M / 20M

ORP-D

Power Supply (600V)

2586

105°C / 600V

0.5 – 5.5 mm²

2 – 10 Cores

100M / 20M / 20M

ORP-TW

Torsion-Resistant

2517

105°C / 300V

Pair-Based (Lineup focus)

3 – 8 Pairs

(N/A) / (N/A) / 50M*

*Note: ORP-TW mechanical durability is rated specifically for torsion at 50M cycles (500mm span) and 10M cycles (100mm span).



2. ORP-30F: Ultra-Slim High-Flex Series (Internal Equipment)

The ORP-30F series is the specialized solution for intra-equipment wiring where space constraints are absolute. By achieving a diameter reduction of up to 32% over conventional robot cables, it facilitates the design of compact robotic joints and high-density sensor arrays. This series is exceptionally versatile, featuring an extensive lineup of 224 distinct types.

  • Primary Applications: Internal wiring for industrial robots, CNC machine tools, high-precision sensors, encoders, and miniaturized cable carriers.
  • Environmental and Material Specifications:

Specification

Technical Detail

UL Style

21103

Rated Temperature

105°C

Rated Voltage

30V

Flame Retardancy

Horizontal Burning

Jacket Material

Heat- and oil-resistant reinforced PVC (Black Matte)

  • Electrical and Dynamic Characteristics:
    • Sliding Bending: 50 Million cycles.
    • Swinging Bending: 10 Million cycles.
    • Torsion (Twisting): 10 Million cycles.
  • Structural Configurations:
    • Conductor Range: 34 AWG to 22 AWG.
    • Lineup: Layer-stranded (2–10 cores) and twisted-pair (2–20 pairs) configurations.
    • Configuration Note: The 20-pair lineup is restricted to 24 AWG shielded models.

https://www.okidensen.co.jp/en/prod/cable/robot/orp30f.html





3. ORP-SL & ORP-SL 105°C: Slim High-Flex Series

The "Slim" series provides an average 20% diameter reduction compared to the standard ORP series, balancing miniaturization with high-cycle durability. To meet global compliance requirements, build-to-order UL Listing (CL 3) options are available for sizes 0.25 mm² through 0.5 mm².

  • Comparative Specifications:
    • ORP-SL: UL Style 2464, 80°C rating.
    • ORP-SL 105°C: UL Style 2517, 105°C rating.
    • Voltage: 300V (Common).
  • Mechanical Durability:
    • Sliding Bending: 100 Million cycles.
    • Swinging Bending: 20 Million cycles.
    • Torsion: 20 Million cycles.
  • Structural Lineup:
    • Conductor Range: 0.05 mm² to 0.5 mm².
    • Configurations: Layer-stranded (3–15 cores) or twisted-pair (1–20 pairs).

https://www.okidensen.co.jp/en/prod/cable/robot/orpsl.html

https://www.okidensen.co.jp/en/prod/cable/robot/orpsl105C.html





4. ORP: Standard High-Flex Robot Cable Series

The standard ORP series (UL Style 2464/2466) is the baseline for high-flexibility automation applications. It is engineered for compatibility with the full spectrum of robot movement profiles.

  • Electrical Profile (at 20°C):
    • Conductor Resistance (0.2 mm² / 25 AWG): ≤ 105 Ω/km.
    • Conductor Resistance (0.3 mm² / 23 AWG): ≤ 72 Ω/km.
    • Conductor Resistance (0.5 mm² / 21 AWG): ≤ 44 Ω/km.
    • Insulator Resistance: ≥ 100 MΩ-km.
    • Withstand Voltage: AC 2000V (1-minute interval).
  • Allowable Bending Radius (Standardized OKI Protocol):
    • Fixed Parts: 4x Outer Diameter (OD).
    • Moving Parts (Unshielded): 6x OD.
    • Moving Parts (Shielded): 8x OD.
  • Durability Ratings: 100M sliding, 20M swinging, 20M torsion.

https://www.okidensen.co.jp/en/prod/cable/robot/orp.html





5. ORP-D: High-Flex Power Supply Series (600V Rated)

The ORP-D series utilizes proprietary elastomer insulation to maintain a 600V rating within a physical diameter typically associated with 300V-class cables. Build-to-order UL Listing (CL 3) is supported for all sizes excluding 5.5 mm².

  • Applications: Power supply for multi-axis arm robots, assembly/welding robots, carrier systems, and high-voltage carrier devices.
  • Technical Performance Data:

Size (mm²)

AWG

Resistance (Ω/km)

Allowable Current (A) at 30°C

0.5

21

≤ 40

9.2

0.75

19

≤ 26

12.2

1.25

17

≤ 16

17.3

2.0

15

≤ 9.3

23.6

3.5

12

≤ 5.3

35.8

5.5

10

≤ 3.4

48.9

*Note: 5.5 mm² is standardized as 10 AWG per industrial power specifications.

  • Durability Ratings: 100M sliding, 20M swinging, 20M torsion.

https://www.okidensen.co.jp/en/prod/cable/robot/orpd.html





6. ORP-TW: Torsion-Resistant Series

The ORP-TW series is specifically engineered for multi-axis torsion stresses. It features specialized shielding and braiding to resist the internal "bird-caging" effects common in high-twisting environments.

  • Mechanical Torsion Durability:
    • 50 Million cycles: Performance validated at a 500mm span.
    • 10 Million cycles: Performance validated at a 100mm span.
  • Electrical and Material Constraints:
    • UL Style: 2517.
    • Ratings: 105°C, 300V.
    • Lineup: Optimized for pair configurations (3 to 8 pairs).

https://www.okidensen.co.jp/en/prod/cable/robot/orptw.html





7. Standardized Testing and Material Guidelines

The entire ORP series shares a common technological foundation designed for high-performance industrial reliability.

Core Materials and Finish

  • Special Elastomer Insulation: Proprietary OKI material that provides the requisite elastic memory and durability for high-flex cycles.
  • Oil-Resistant PVC Jacket: Formulated for compatibility with industrial lubricants and cutting oils.
  • Matte Finish: All cables feature a matte black finish to minimize surface friction and enhance aesthetics in professional robotic assemblies.

Standardized OKI Movement Performance Tests

All mechanical ratings are based on the following standardized test conditions:

  • Sliding Bending: R = approx. 6x OD (30F utilizes 10x OD); 70 cycles/min; 350mm travel.
  • Swinging Bending: R = approx. 8x OD; ±90° angle; 40 cycles/min; 4.9N load (2.94N for 30F).
  • Twisting (Torsion): ±180° angle; 70 cycles/min; 500mm interval.

Important Technical Notice

All cycle counts, allowable currents, and bending radii provided in this report are calculated reference values derived from OKI's internal test methods. These data points are intended as selection guidelines and do not constitute an absolute guarantee of performance in every unique operating environment. Final cable selection should always be validated through field-specific stress testing.

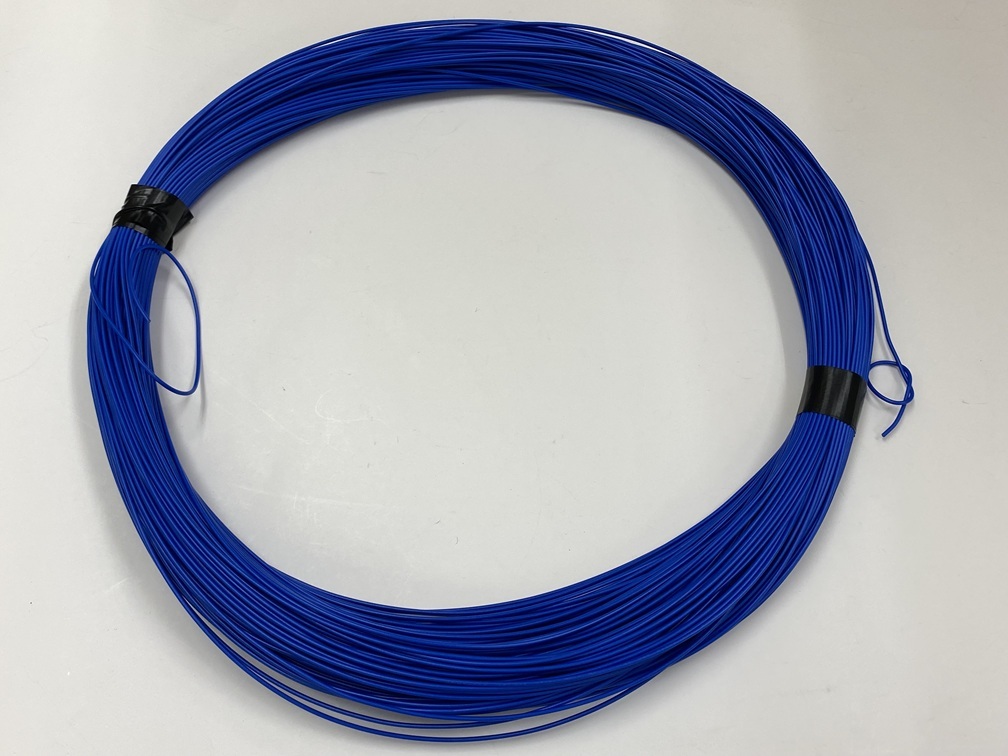

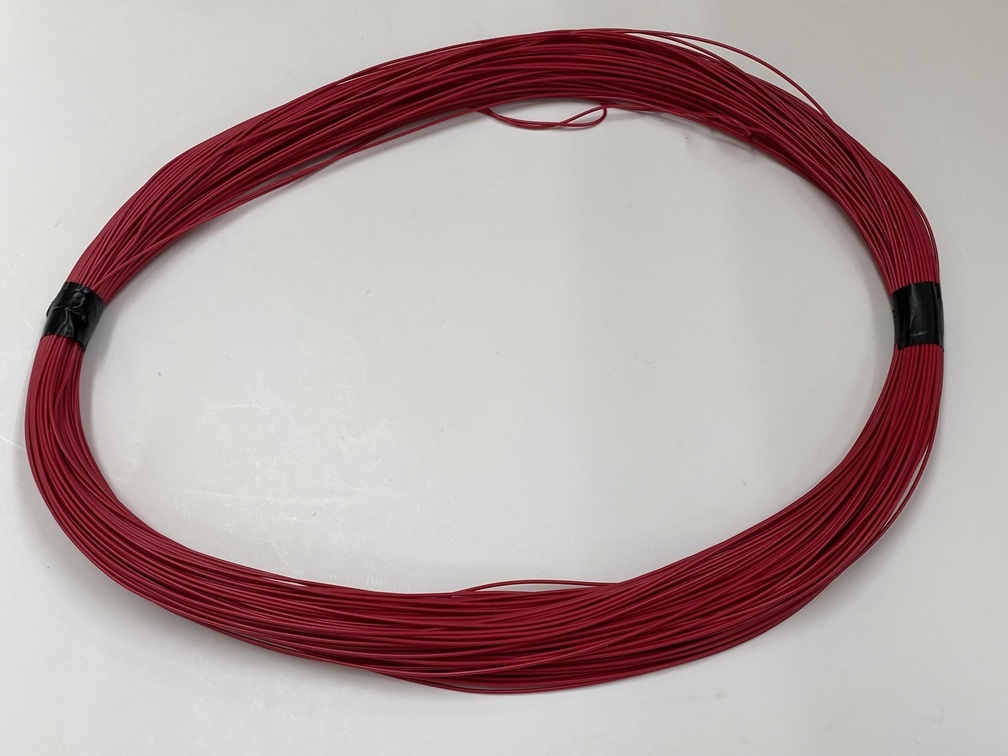

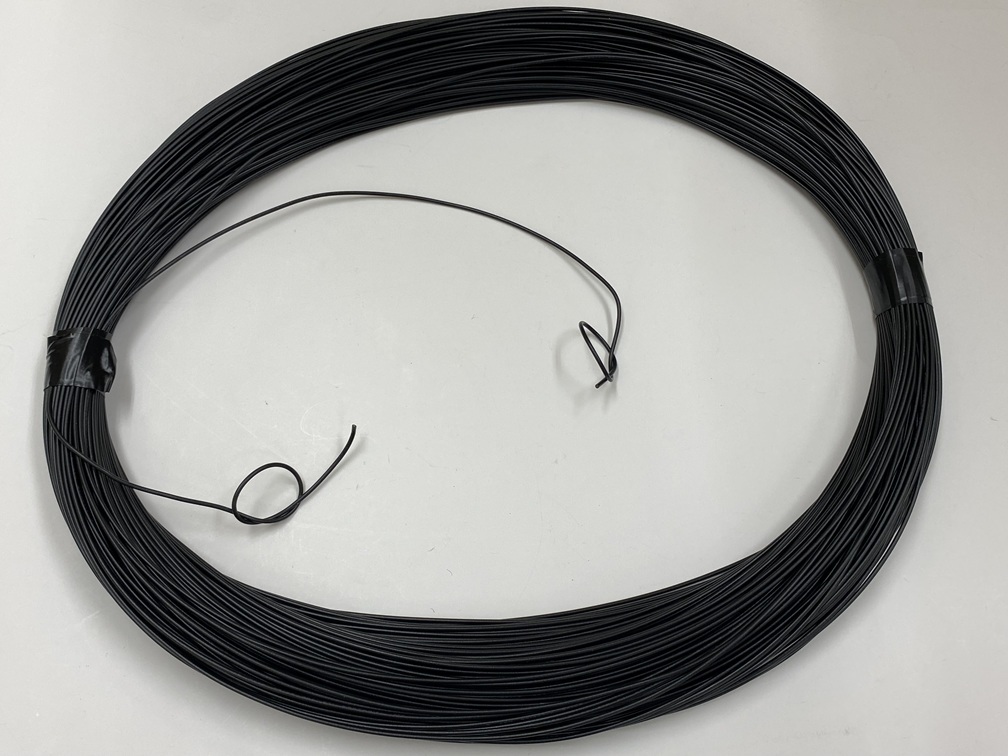

We offer Proterial (formerly Hitachi Metals) UL1015 wire in various gauges (AWG22 through AWG10) and colors, available in our shop in both 100m coils and fixed-length cuts. Specifications: 600V, 105°C. Standard delivery time is 2–3 days. The product shown in the image is the UL1015 AWG14 100m coil. Please purchase via the product page below.

◇Product Page
UL1015 AWG22
Colors: Brown, Red, Orange, Yellow, Green, Blue, Purple, Gray, White, Black, Pink, Sky Blue
https://nisho-en.ocnk.net/product/1105

UL1015 AWG20
Colors: Brown, Red, Orange, Yellow, Green, Blue, Purple, Gray, White, Black, Pink, Sky Blue
https://nisho-en.ocnk.net/product/1106

UL1015 AWG18
Colors: Brown, Red, Orange, Yellow, Green, Blue, Purple, Gray, White, Black
https://nisho-en.ocnk.net/product/1107

UL1015 AWG16
Brown, Red, Orange, Yellow, Green, Blue, Purple, Gray, White, Black
https://nisho-en.ocnk.net/product/1548

UL1015 AWG14
Brown, Red, Orange, Yellow, Green, Blue, Purple, Gray, White, Black
https://nisho-en.ocnk.net/product/1549

UL1015 AWG12
Brown, Red, Orange, Yellow, Green, Blue, Purple, Gray, White, Black
https://nisho-en.ocnk.net/product/1550

UL1015 AWG10
Brown, Red, Orange, Yellow, Green, Blue, Purple, Gray, White, Black
https://nisho-en.ocnk.net/product/1551


*The cable marking has been changed from HITACHI to PROTERIAL.




UL1015 AWG14 Green 100m coil










Proterial (ex-Hitachi Metals) UL1007 AWG28 / AWG26 / AWG24 / AWG22 / AWG20 / AWG18 are available in various colors in 100m rolls and standard lengths in our shop. Rated voltage: 300V, 80°C. The product shown in the image is a 100m coil of UL1007 AWG16.

◇Product Page
UL1007 AWG28
Colors: Brown, Red, Orange, Yellow, Green, Blue, Purple, Gray, White, Black
https://nisho-en.ocnk.net/product/1099

UL1007 AWG26
Colors: Brown, Red, Orange, Yellow, Green, Blue, Purple, Gray, White, Black, Pink, Light Blue
https://nisho-en.ocnk.net/product/1100

UL1007 AWG24
Colors: Brown, Red, Orange, Yellow, Green, Blue, Purple, Gray, White, Black, Pink, Light Blue
https://nisho-en.ocnk.net/product/1101

UL1007 AWG22
Colors: Brown, Red, Orange, Yellow, Green, Blue, Purple, Gray, White, Black, Pink, Light Blue
https://nisho-en.ocnk.net/product/1102

UL1007 AWG20
Colors: Brown, Red, Orange, Yellow, Green, Blue, Purple, Gray, White, Black
https://nisho-en.ocnk.net/product/1103

UL1007 AWG18
Colors: Brown, Red, Orange, Yellow, Green, Blue, Purple, Gray, White, Black
https://nisho-en.ocnk.net/product/1104

UL1007 AWG16
Colors: Brown, Red, Orange, Yellow, Green, Blue, Purple, Gray, White, Black
https://nisho-en.ocnk.net/product/1547


*The cable marking has been changed from HITACHI to PROTERIAL.




UL1007 AWG16 Red 100m coil




UL1007 AWG16 Black 100m coil




UL1007 AWG16 Green 100m coil


This is a wire harness for Minebea Connect’s CL07D series of 5.8mm pitch waterproof connectors. The CL07D series consists of dust- and water-resistant connectors (IP67-certified) designed for high current applications (10A max) with a 5.8mm pitch. The product shown in the image uses an F-housing (CL07D02A) for the connector, 215002-2M terminals for 0.3–0.5 SQ (AWG 22–20), WS07MF-0A wire seals, and UL1007 AWG 22 wire.

◇F Housing
CL07D02A / CL07D03A

◇Manufacturer’s Website
https://www.minebea-c.com/english/product/waterproof-connetctor/cl07a.html
https://www.minebea-c.com/.assets/MCI_waterproof_CL07D_E.pdf















Our store carries Hanshin Electric’s robot cables for moving-part wiring—the MRC UL20276, UL2464, and UL2501 models, available in both unshielded and shielded versions—in standard 100-meter lengths and cut to order in 1-meter increments. The products shown in the image are the MRC UL20276-SB AWG24×6P and the MRC UL20276-SB AWG20×4P. Please place your order via the product pages below.

◇Manufacturer's website
http://www.hanshin-cable.co.jp/english/index.html

◇Product page
MRC UL20276 30V 80℃ Unshielded
https://nisho-en.ocnk.net/product-list/81

MRC UL20276 30V 80℃ Shielded (SB)
https://nisho-en.ocnk.net/product-list/82







MRC UL20276-SB AWG24×6P






MRC UL20276-SB AWG20×4P






◇Catalog
★ Cable for fixed wiring (thin type)
UL20276SR-SB (twisted pair type)
UL2464SR-SB (twisted pair type)

★ Cable for fixed wiring
UL20276
UL20276-SB
UL20276 (twisted pair type)
UL20276-SB (twisted pair type)
UL2464
UL2464-SB
UL2501
UL2501-SB
CE/UL2517
CE/UL2517-SB
CE/UL2501
CE/UL2501-SB

★ Cable for moving parts (robot cable)
MRC UL20276
MRC UL20276-SB
MRC UL20276 (twisted pair type)
MRC UL20276-SB (twisted pair type)
MRC UL2464
MRC UL2464-SB
MRC UL2501
MRC UL2501-SB
MRC CE/UL2517
MRC CE/UL2517-SB
MRC CE/UL2501
MRC CE/UL2501-SB






This is a wire harness for the MOLEX 1.50mm pitch Pico-SPOX receptacle crimp housing, single row, friction lock, 87439 series. The housing shown in the image is 87439-0700; the contacts are 87421-0000; and the cable is Nikko Electric Wire’s ultra-fine, special heat-resistant vinyl wire (UL11482, AWG 26).

◇Housings
87439-0200 / 87439-0300 / 87439-0400 / 87439-0500 / 87439-0600
87439-0700 / 87439-0800 / 87439-0900 / 87439-1000 / 87439-1100
87439-1200 / 87439-1300 / 87439-1400 / 87439-1500

◇Contacts
87421-0000  AWG 24–26
87421-0100  AWG 26–30

◇Manufacturer’s Website
https://www.molex.com/molex/search/partSearch?query=87439&pQuery=
https://www.molex.com/molex/search/partSearch?query=87421&pQuery=








This is a cable harness for Hirose Electric’s 2mm-pitch, fully locking PCB-to-cable connectors (UL and C-UL certified) from the DF51 series. The sockets are available in a single-row type (DF51-*S-2C) and a dual-row type (DF51-*DS-2C). The crimp terminals are compatible with the DF11 series. The product shown in the image uses the DF51-8DS-2C housing, the DF11-2428SCF contacts, and Nichigoh RO-FLEX2464-1061TS 24 AWG 6C cable.

◇Housing
Single-Row Crimp Sockets
DF51-2S-2C / DF51-3S-2C / DF51-4S-2C / DF51-5S-2C / DF51-6S-2C / DF51-7S-2C

Double-Row Crimp Sockets
DF51-4DS-2C / DF51-6DS-2C / DF51-8DS-2C / DF51-10DS-2C / DF51-12DS-2C
DF51-14DS-2C / DF51-16DS-2C / DF51-18DS-2C / DF51-20DS-2C / DF51-22DS-2C
DF51-24DS-2C / DF51-26DS-2C / DF51-28DS-2C / DF51-30DS-2C

◇Contacts
Tin-plated     Gold-plated
DF11-22SCF   DF11-22SCFA(04)   φ 1.2 - 1.45 mm
DF11-2428SCF  DF11-2428SCFA(04)  φ 0.9 - 1.45 mm
DF11-30SCF   DF11-30SCFA(04)   φ 0.75 - 1.2 mm

◇Manufacturer’s Website
https://www.hirose.com/en/product/series/DF51











These are cable harnesses for Hirose Electric’s LF Series of compact waterproof shielded connectors. The product shown in the image uses a solder-type straight plug (female) connector, model LF10WBP-12S(31), and Belden BEL-RBT20276 6P × 0.2SQ cable. The cable is protected by a polyester braided tube.

◇Connectors: Solder-type Straight Plugs
Male Terminals
LF07WBP-3P(31) / LF07WBP-6P(31) / LF07WBP-6P-A(31) / LF10WBP-4P (31)
LF10WBP-12P(31) / LF13WBP-11P / LF13WBP-20P
Female Terminals
LF07WBP-3S(31) / LF07WBP-6S(31) / LF07WBP-6S-A(31) / LF10WBP-4S (31)
LF10WBP-12S(31) / LF13WBP-11S / LF13WBP-20S

◇Manufacturer’s Website
https://www.hirose.com/en/product/series/LF
