UL11527 AWG28 φ0.60mm [49/0.05 FRPEL10(U)]
UL11527 AWG28 φ0.60mm
[49/0.05 FRPEL10(U)]
Our Selling Price: US$1.81(tax excluded)
Prices vary according to options.
Item Description
■Oki Electric Cable Co., Ltd．
■Cutting = 1m unit
■L/T：1〜2Weeks
If not in stock, L/T is 1〜2 months.

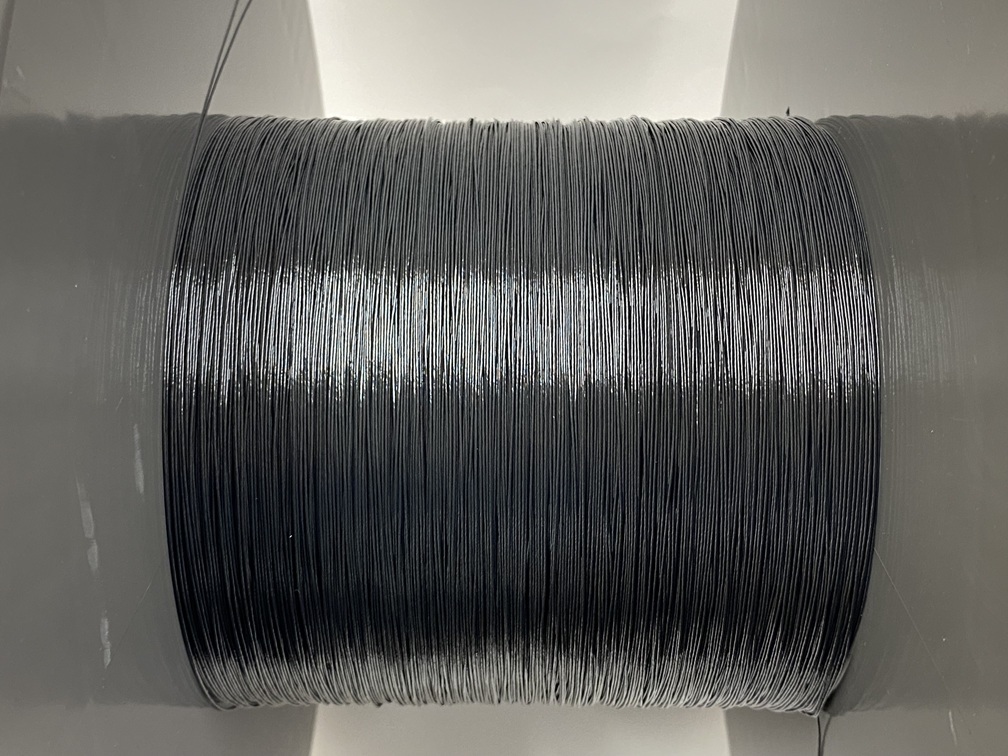

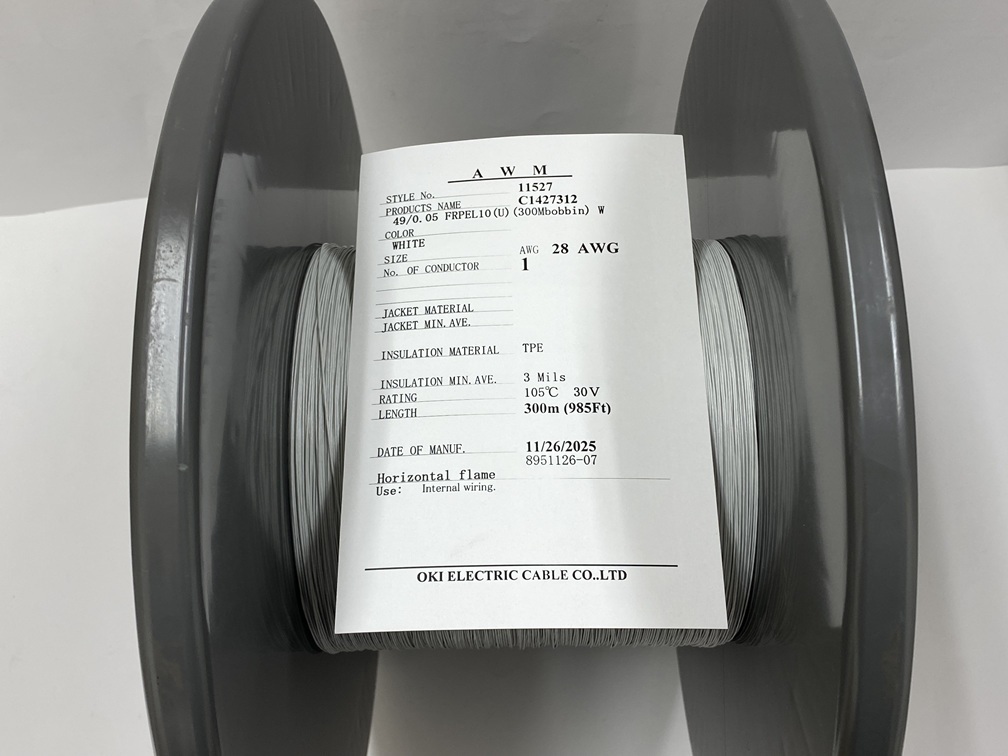

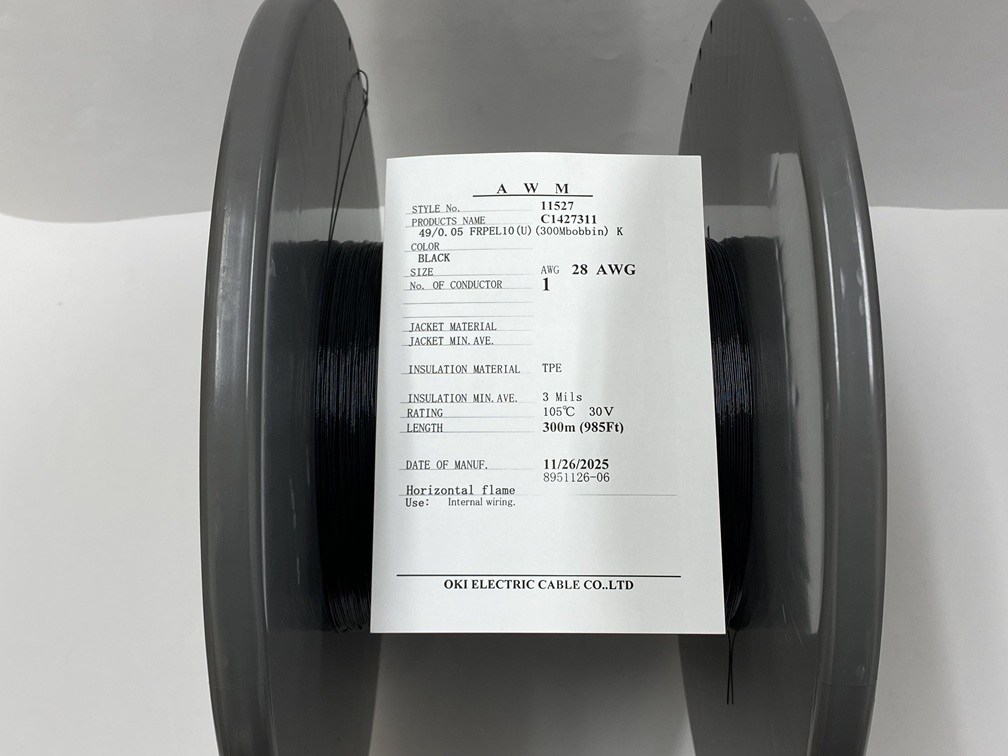

■Small diameter Single-core robot cable φ0.60mm
UL11527 AWG28 φ0.60mm is a single-core robot cable for moving parts with a thin insulation outer diameter of 0.60mm. This is the core wire of the ultra-thin robot cable ORP-30F. Polyester elastomer insulated wire, insulation outer diameter 0.60mm, conductor configuration: 49/0.05, rated: 105℃ 30V, RoHS2 compliant. It can be used for low-profile connectors with a crimp-compatible insulation outer diameter of 0.4 to 0.8mm for contacts.
*Cut wires are not eligible for the UL Processed Wire Program.
*Quantity-based pricing applies. Please select the quantity after selecting the quantity-based pricing.
Prices for lengths from 1 to 99 meters
Prices for lengths from 100 to 299 meters or more
Prices for lengths over 300 meters

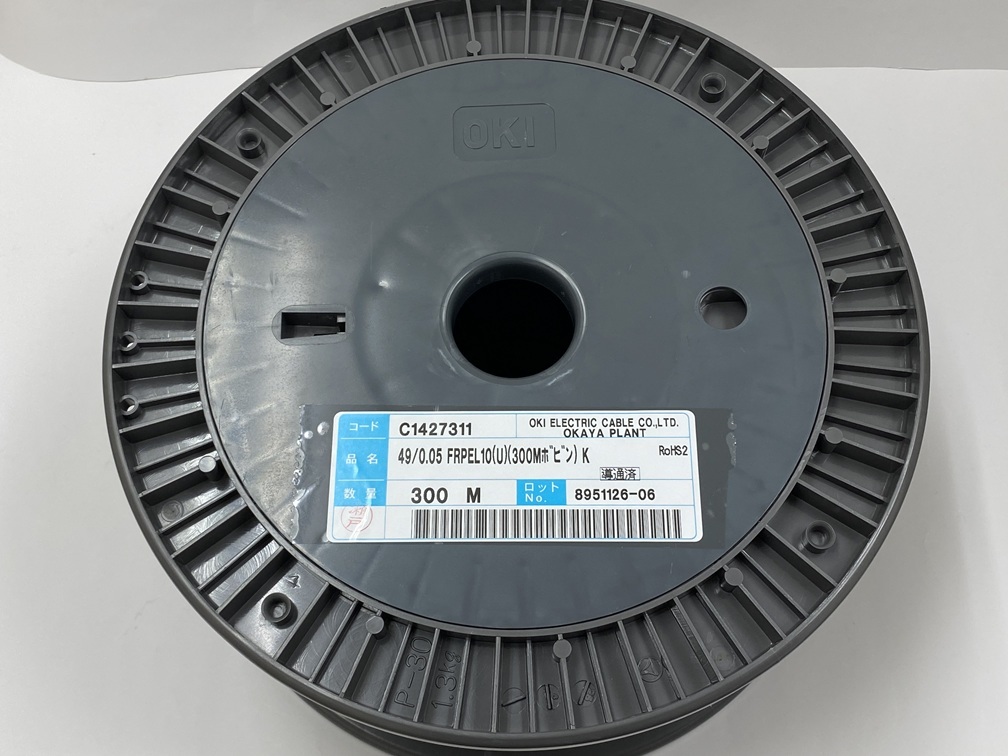

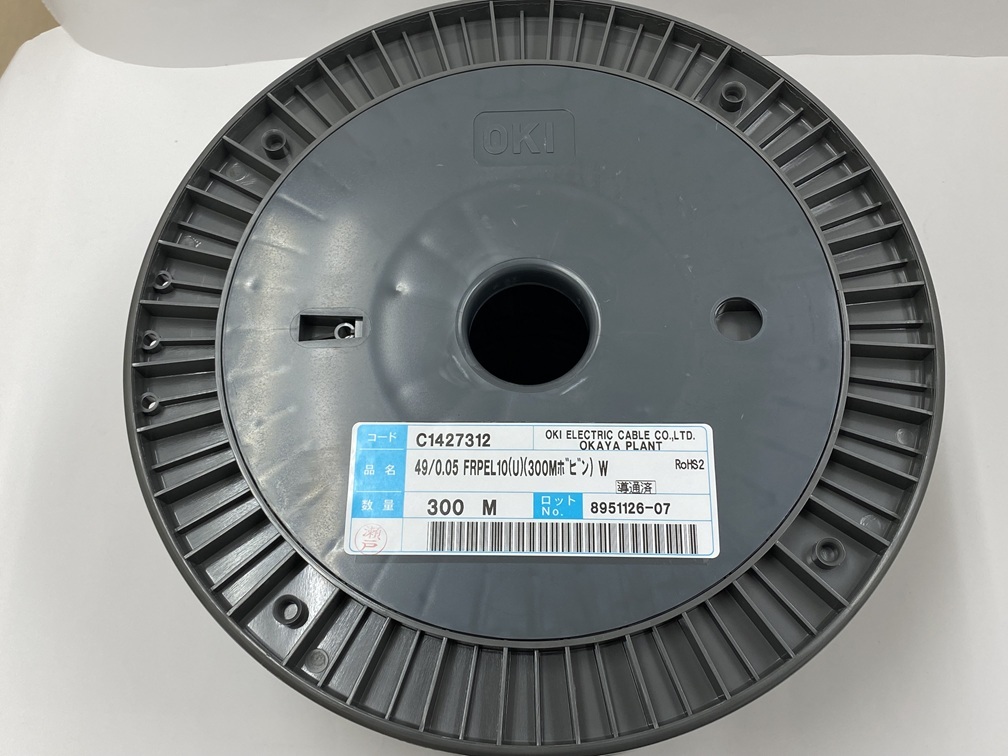

(300 meters or more will include a 300 meter reel and a bobbin for the remaining number of meters.)
