TN430 5.5SQ|Ninomiya Electric Wire

Item Description

TN430 5.5SQ

Our Selling Price: US$18.86(tax excluded)

Item Description

■Ninomiya Electric Wire

■Sales unit
 Cut:10m or more in 1m units *Orders cannot be made for less than 10m.
 Roll:1roll=100m

■L/T:1〜2Weeks
 If not in stock, L/T is 1〜2 months.

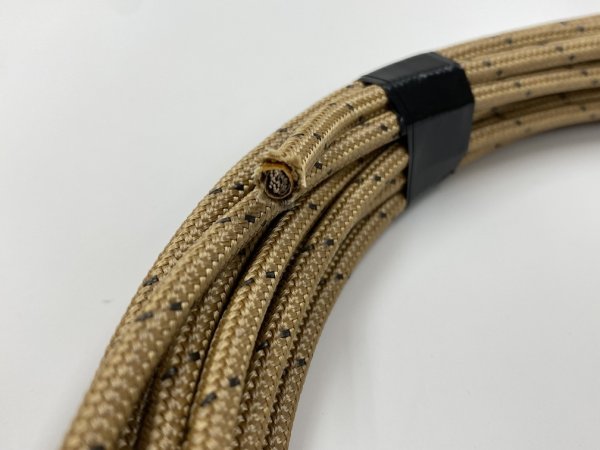

Silica-glass-yarn braided Nickel-clad-copper-conductor Wire: TN430

Compliant with RoHS2
Max. operating temp:400℃

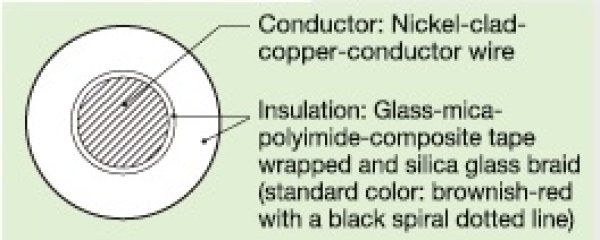

TN430 is a super heat-resistant wire, the conductors of which are heat-resistant and corrosion-resistant as well as flexible nickel-clad-copper-conductor wire wrapped in glass-mica-polyimide-composite tape coated with silica-glass fiber. Polyimide coating, which is brownish-red and excels in insulating characteristics, is applied to the insulation of TN430. TN430 is manufactured according to the NINOMIYA Standards.

Features of nickel-clad-copper-conductor wire
The conductor resistance of nickel-clad-copper-conductor wire is about a quarter (1/4) of that of nickel-conductor wire; therefore the former can be thinner in diameter and lighter than the latter while the allowable current value of the former is the same as that of the latter.
Since nickel-clad-copper-conductor wire is more flexible than nickel-conductor wire, it can be easily processed and routed.
The nickel plate is 20 to 30 times as thick as conventional nickel plate (1 to 5μm). Note that the area ratio between nickel and copper is about 28:72.
Since the surface of nickel-clad-copper-conductor wire is nickel, it is more corrosion-resistant than copper wire.
Its electric conductivity changes over time in high temperature use. However, about 60% of the electric conductivity is maintained even after the nickel-clad-copper-conductor wire is used at a temperature of 400℃ for three consecutive years.

Applications
TN430 is used for applications such as the lead wire in an electric heater, which must be highly resistant to heat as well as corrosion, and wire in high-temperature equipment.





■Manufacturer's website
https://ninomiya-ew.co.jp/en/product/hrw_tn430/
