JST　2.0mm Pitch PH Connector　PHR-*　SPH-002T-P0.5S Crimp Wire Harness

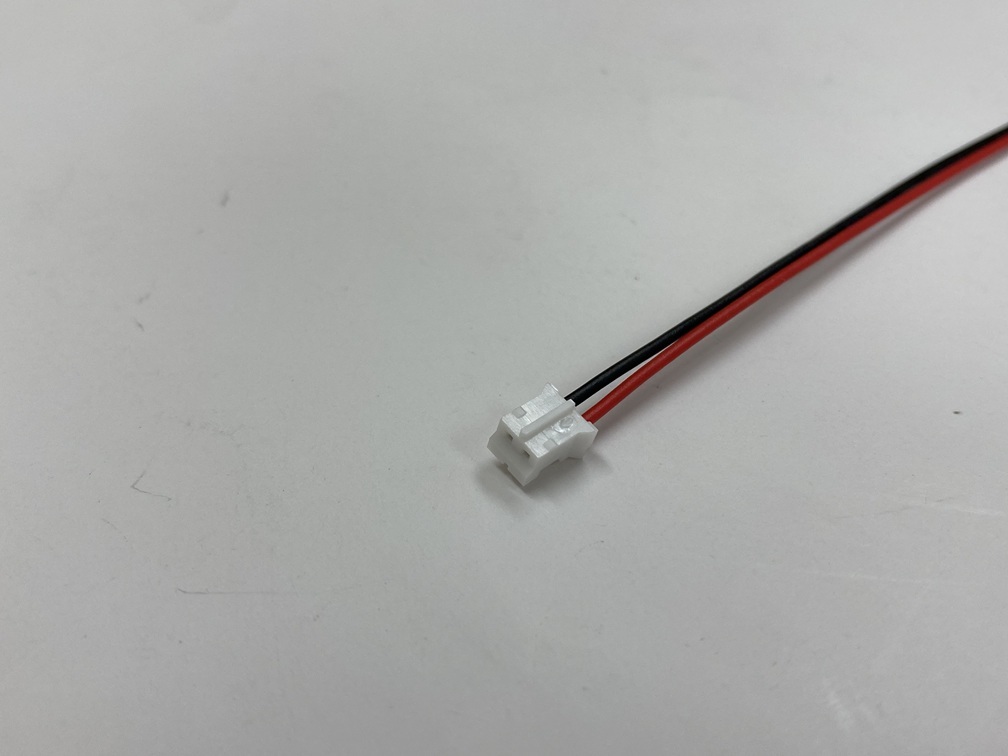

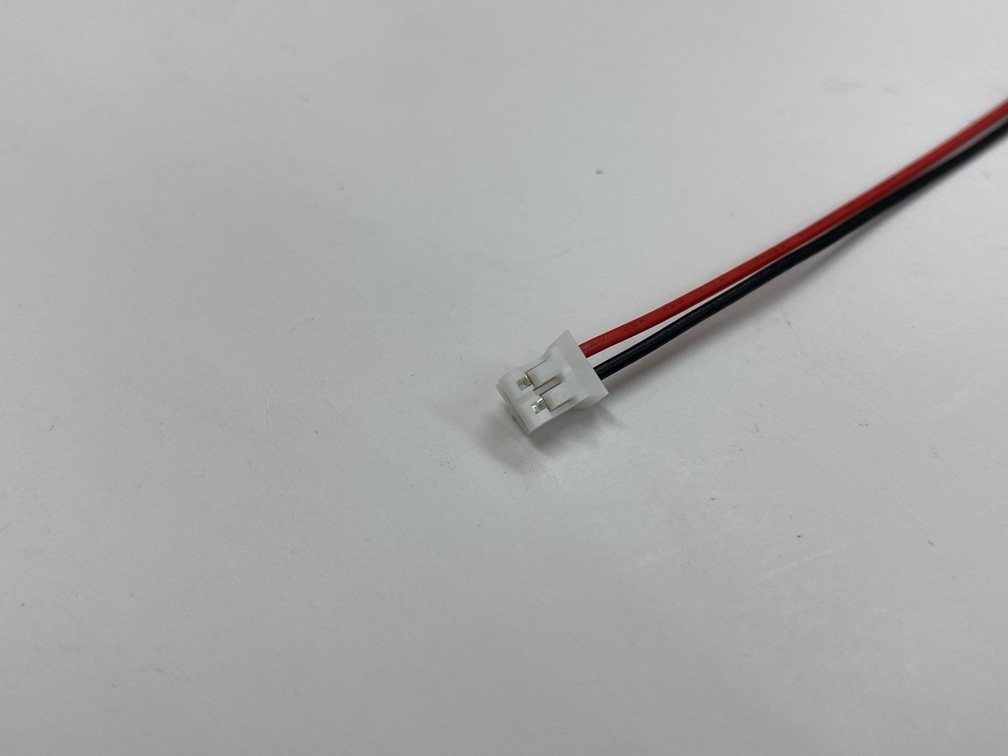

This is a wire harness for JST 2.0mm pitch PH connectors. The product shown in the image uses a PHR-2 housing, SPH-002T-P0.5S contacts, and a UL1061 AWG24 cable.

◇Housing
PHR-2 / PHR-3 / PHR-4 / PHR-5 / PHR-6
PHR-7 / PHR-8 / PHR-9 / PHR-10 / PHR-11
PHR-12 / PHR-13 / PHR-14 / PHR-15 / PHR-16

◇Contact
SPH-002T-P0.5S　AWG30~24　Wire sheathing outer diameter 0.8~1.5mm
SPH-002T-P0.5L　AWG28~24　Wire sheathing outer diameter 0.8~1.5mm
SPH-004T-P0.5S　AWG32~28　Wire sheathing outer diameter 0.5~0.9mm

◇Manufacturer site
https://www.jst-mfg.com/product/index.php?series=199
