HRS DF52-*P-0.8C DF52-2832PCF + Oki Electric Cable UL1571 AWG28 Thin Insulator Outer Diameter 0.58mm Wire Harness

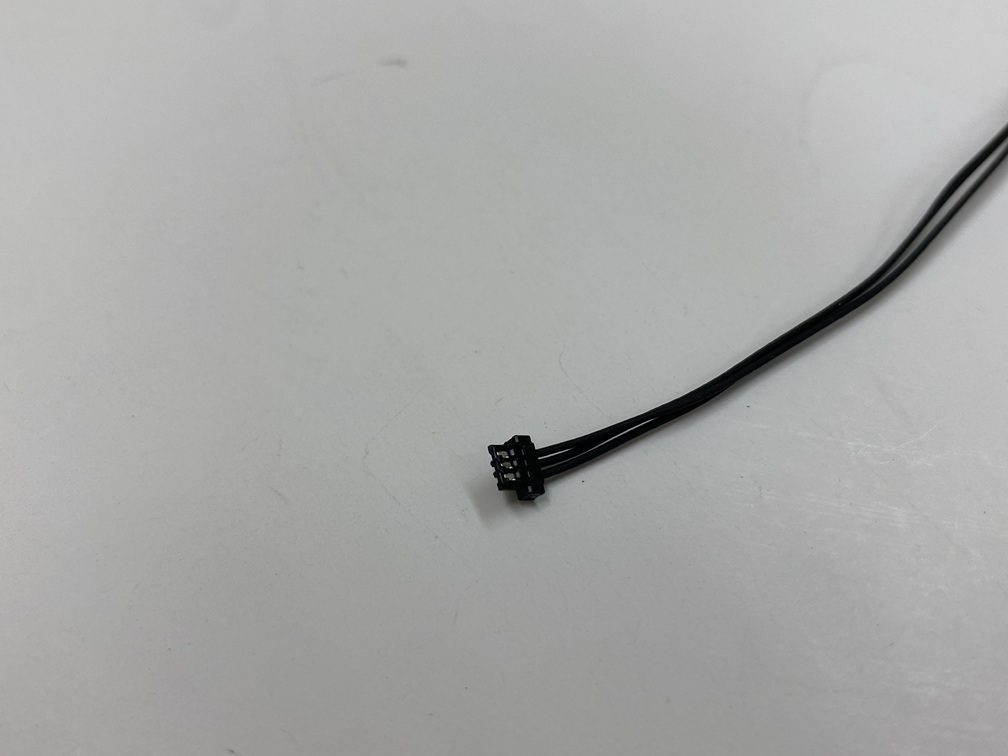

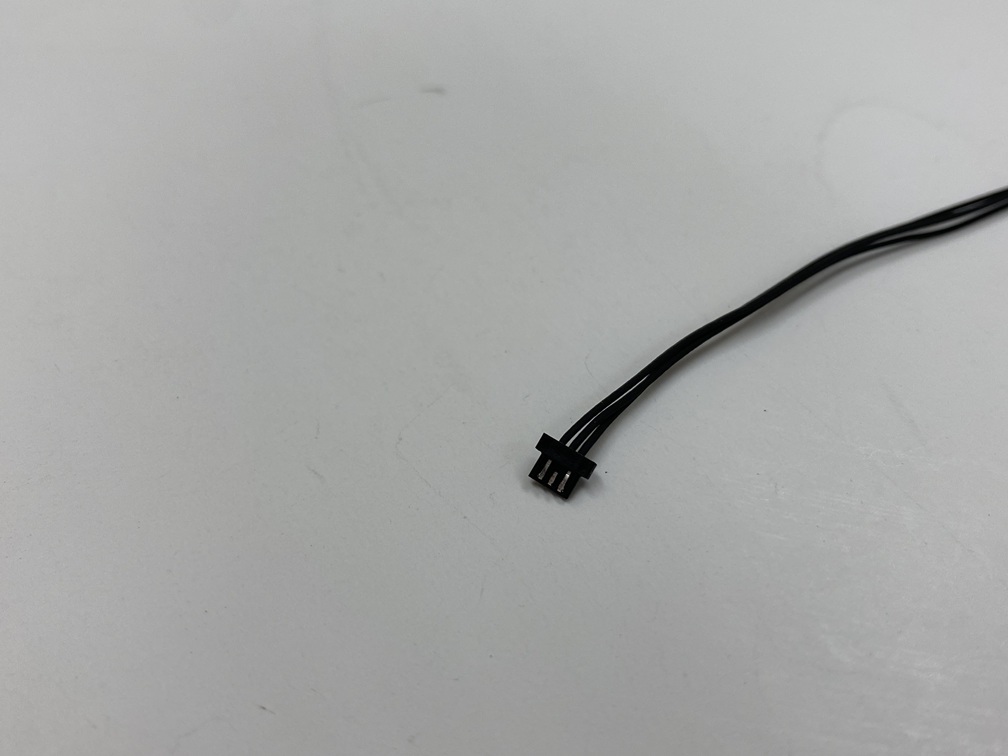

Hirose Electric DF52 connector wire harness. The DF52 series is a 0.8mm pitch, small and robust board-to-cable connector that supports high currents of up to 2.5A (2-core: when using AWG#28), with a box-type crimp terminal to prevent deformation, a half-mating prevention structure, and is halogen-free. The product in the image uses DF52-3P-0.8C for the housing, DF52-2832PCF for the contact, and Oki Electric Cable UL1571 AWG28 Thin Diameter Φ0.58mm for the cable.

◇Housing
DF52-2P-0.8C / DF52-3P-0.8C / DF52-4P-0.8C / DF52-5P-0.8C / DF52-6P-0.8C
DF52-8P-0.8C / DF52-10P-0.8C / DF52-12P-0.8C / DF52-14P-0.8C / DF52-15P-0.8C
DF52-16P-0.8C / DF52-17P-0.8C / DF52-20P-0.8C

◇Contact
DF52-2832PCF　AWG32～28　φ0.5〜0.6mm

◇HRS　DF52
https://www.hirose.com/product/series/DF52?lang=en

◇Oki Electric Cable　UL1571 AWG28 Thin outer diameter 0.58mm
https://nisho-en.ocnk.net/product/167
