OKI Electric Cable　TPFLEX　Twisted Pair 1.27mm Pitch Flat Cable　Noise Countermeasure Product

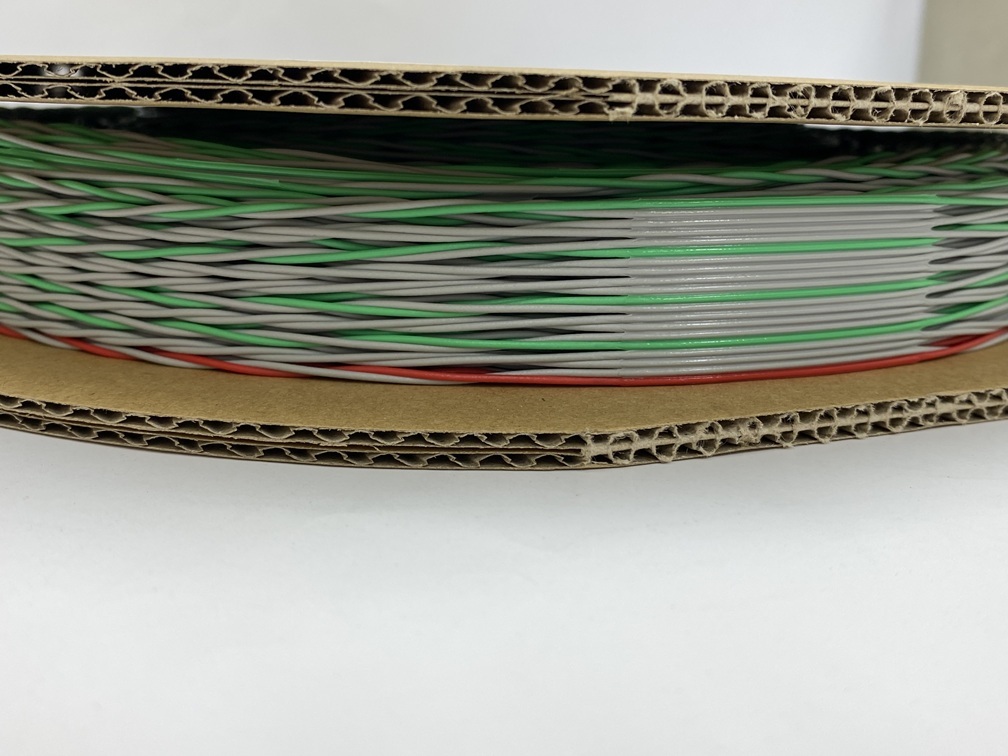

OKI Electric Cable's twisted pair 1.27 pitch flat cable TPFLEX is sold in units of 1 roll = 30.5m at our shop. Delivery time is 2-3 days. TPFLEX has a twisted pair structure with two core wires twisted together to prevent noise and crosstalk. The fused part is 50mm long and the unfused part is 200mm long. There are two colors: normal type TPFLEX-N and color type TPFLEX-N4. Please order from the product page.

◇Product

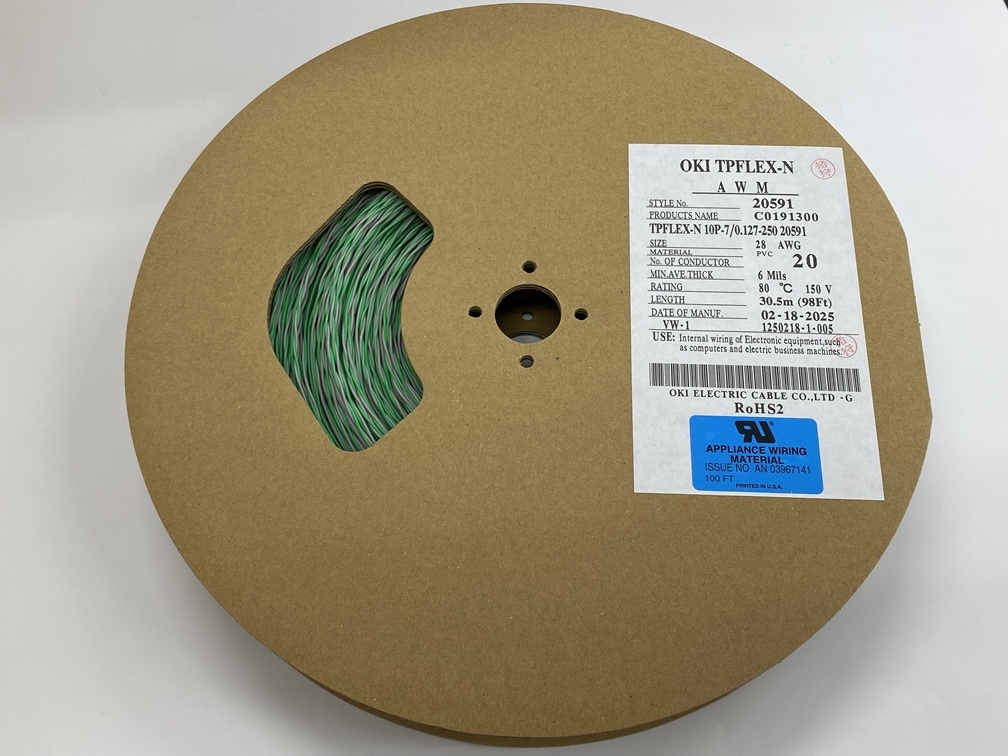

TPFLEX-N **P-7/0.127-250
Red-gray-gray-gray-green...1st core = red, 5nth core = green, others = gray

TPFLEX-N4 **P-7/0.127-250
Brown-red-orange-yellow-green-blue-purple-gray-white-black...(10 colors are repeated)

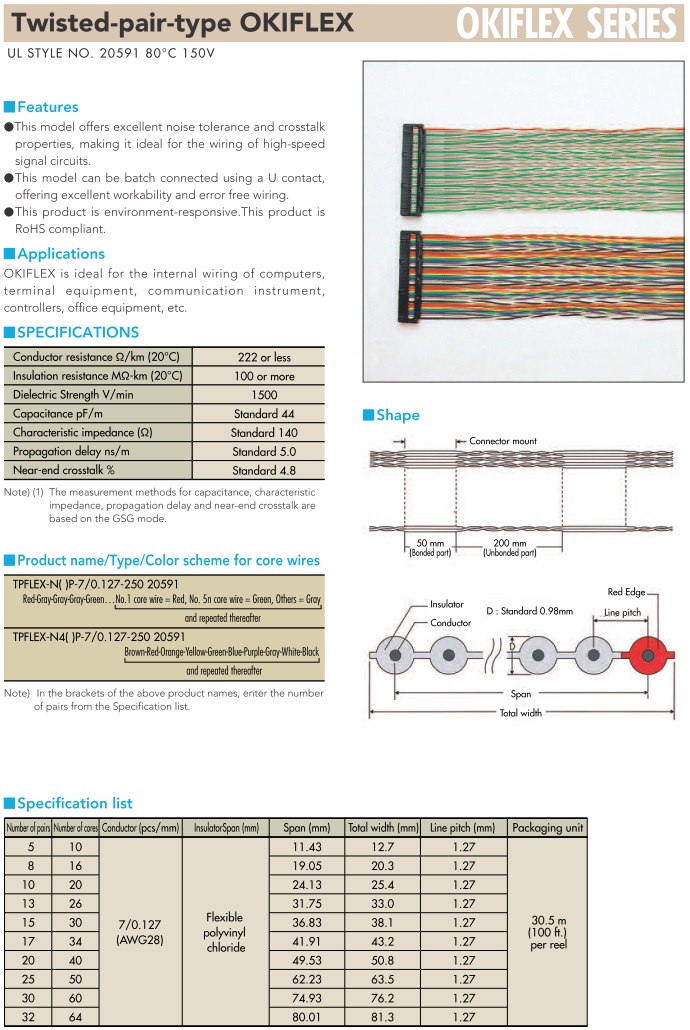

◇Manufacturer site
https://www.okidensen.co.jp/en/prod/cable/flat/twist591_okiflex.html

◇Product page
https://nisho-en.ocnk.net/product-list/23

TPFLEX-N 10P-7/0.127-250
