JAE　2.0mm pitch 2-row LY connector LY10-DC**BR　LY10-C2-A1-10000 Crimp Wire Harness

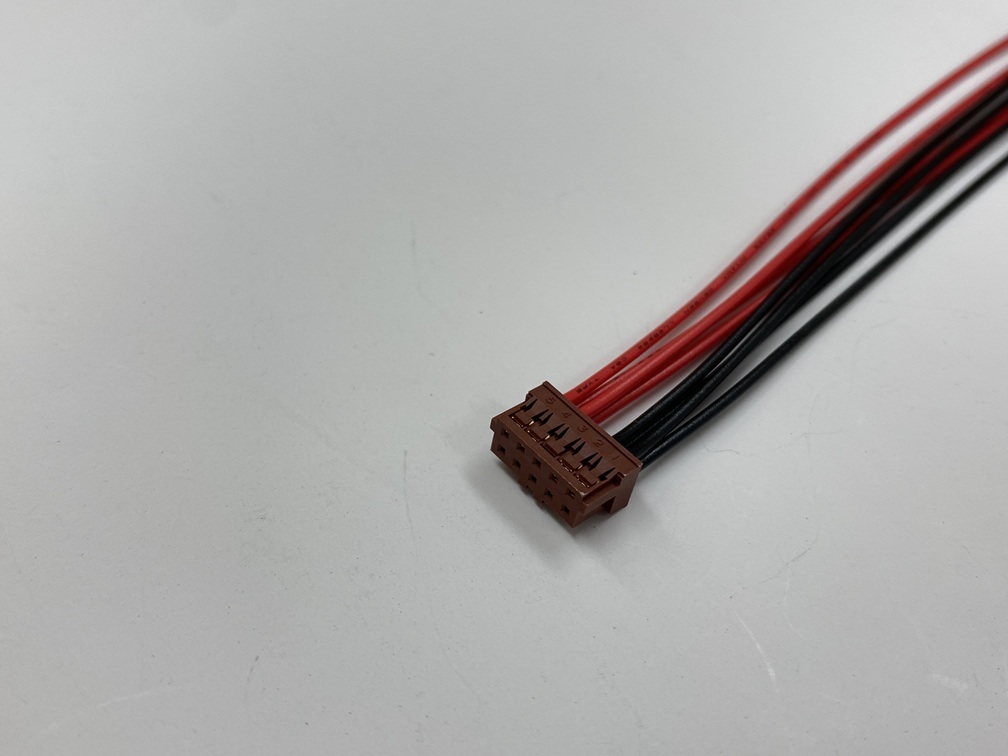

JAE 2.0mm pitch 2-row LY10 series wire harness. The product in the image uses LY10-DC10BR for the housing, LY10-C2-A1-10000 (gold-plated) for the contacts, and UL1007 AWG28 for the cable.

◇Housing
LY10-DC4BR / LY10-DC6BR / LY10-DC8BR / LY10-DC10BR / LY10-DC12BR
LY10-DC14BR / LY10-DC16BR / LY10-DC18BR / LY10-DC20BR / LY10-DC22BR
LY10-DC24BR / LY10-DC26BR / LY10-DC28BR / LY10-DC30BR / LY10-DC32BR
LY10-DC34BR / LY10-DC36BR / LY10-DC38BR / LY10-DC40BR /LY10-DC42BR
LY10-DC44BR

◇Contacts
LY10-C1-A1-10000　Gold-plated AWG26-22 φ0.8～φ1.3mm
LY10-C2-A1-10000　Gold plated　AWG30～26 φ0.7～φ1.2mm

LY10-C1-5-10000　Tin plated　AWG26～22 φ0.8～φ1.3mm
LY10-C2-5-10000　Tin plated　AWG30～26 φ0.7～φ1.2mm

◇Manufacturer site
https://www.jae.com/en/connectors/series/detail/id=64299&type_code=T1040
