CABLE SHOP NISHO JAPAN

UL1007 AWG20

CABLE SHOP NISHO JAPAN — 2026-06-19T17:02:27+09:00

■Proterial (ex- Hitachi Metals)

■Sales unit: 100m or 610m

■L/T：1〜2Weeks　　　　
　If not in stock, L/T is 1〜2 months.

■100m roll cut products are not compatible with the UL Processed Wire Program.

The printing on the cable has been changed to Proterial instead of Hitachi.

UL1015 AWG12

CABLE SHOP NISHO JAPAN — 2026-06-18T13:32:58+09:00

■Proterial (ex- Hitachi Metals)

■Sales unit: 100m or 305m

■L/T：1〜2Weeks　　　　
　If not in stock, L/T is 1〜2 months.

■100m roll cut products are not compatible with the UL Processed Wire Program.

The printing on the cable has been changed to Proterial instead of Hitachi.

UL1015 AWG22

CABLE SHOP NISHO JAPAN — 2026-06-18T13:31:43+09:00

UL1007 AWG22

CABLE SHOP NISHO JAPAN — 2026-06-17T14:19:35+09:00

CoaXPress Ver.2.0　CXP12 Series

CABLE SHOP NISHO JAPAN — 2026-06-12T16:09:17+09:00

Manufacturer: OKI Electric Cable
Minimum Order Quantity: 1 unit
Made to Order
*Delivery time varies depending on the product and quantity; please inquire.

◇Manufacturer's website
https://www.okidensen.co.jp/en/prod/cable/movable/coaxpress-cxp12.html

Features
Realizing high-speed transmission of up to 12.5 Gbps per lane,and maximum transmission speed of 50 Gbps with 4-lane support.
Maximum transmission distance is 20m for fixed wiring and 9m for movable wiring.
Supported connector types are BNC and micro BNC.

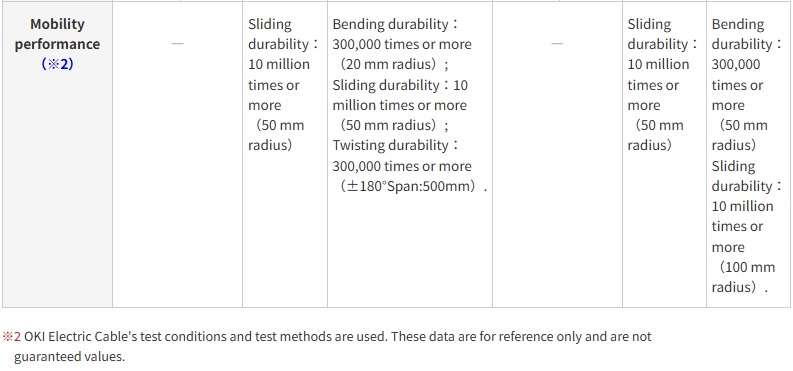

Sliding durability: 10 million times or more; Twisting durability: 300,000 times or more.(See spec chart for details)

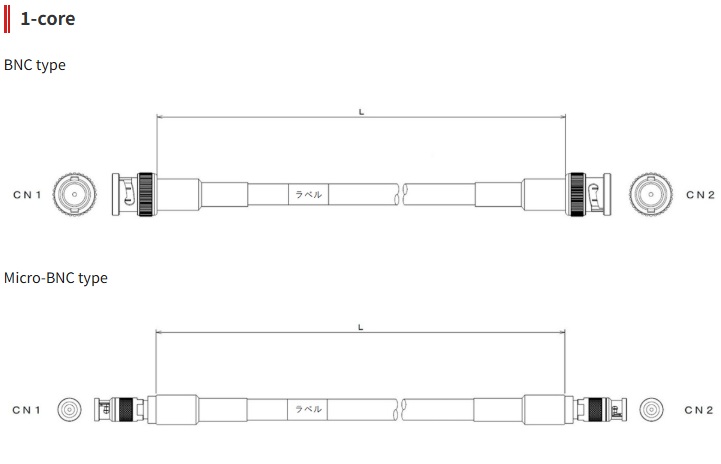

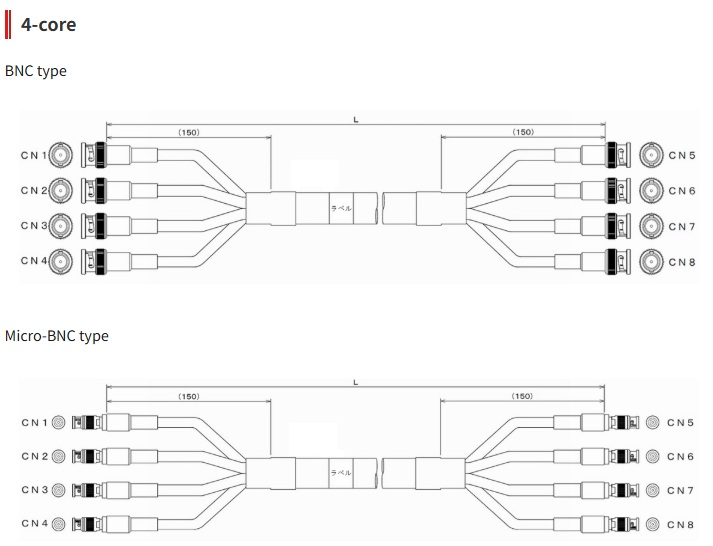

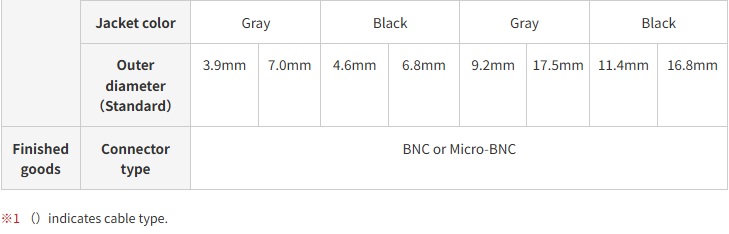

Prouduct name
CXP12 - (1) - (2) - (3) - (4)
(1)Number of cores：
1 core：1C 4 cores：4C

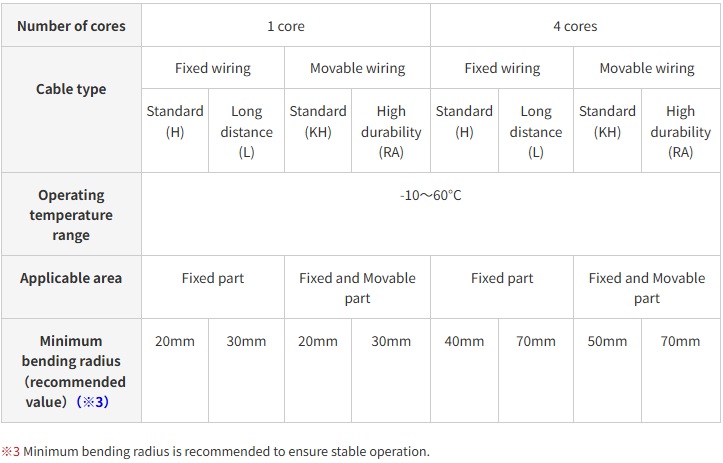

(2)Cable type
for Fixed wiring： High-Flex & Slim：K Standard：H, Long distance：L
for Movable wiring： Standard：KH, High durability：RA

(3)Connector symbol
for BNC on both ends：BSBS, Micro-BNC／BNC: MBSBS, and Micro-BNC on both ends: MBSMBS

(4)Cable length:
ex. 5m: 050, 10m: 100

◇品名例

ケーブル長(m)	1芯固定標準両端BNCコネクタ	1芯固定標準 Micro-BNC／BNC	1芯固定標準両端Micro-BNC
0.5	CXP12-1C-H-BSBS-005	CXP12-1C-H-MBSBS-005	CXP12-1C-H-MBSMBS-005
1	CXP12-1C-H-BSBS-010	CXP12-1C-H-MBSBS-010	CXP12-1C-H-MBSMBS-010
2	CXP12-1C-H-BSBS-020	CXP12-1C-H-MBSBS-020	CXP12-1C-H-MBSMBS-020
3	CXP12-1C-H-BSBS-030	CXP12-1C-H-MBSBS-030	CXP12-1C-H-MBSMBS-030
4	CXP12-1C-H-BSBS-040	CXP12-1C-H-MBSBS-040	CXP12-1C-H-MBSMBS-040
5	CXP12-1C-H-BSBS-050	CXP12-1C-H-MBSBS-050	CXP12-1C-H-MBSMBS-050
6	CXP12-1C-H-BSBS-060	CXP12-1C-H-MBSBS-060	CXP12-1C-H-MBSMBS-060
7	CXP12-1C-H-BSBS-070	CXP12-1C-H-MBSBS-070	CXP12-1C-H-MBSMBS-070
8	CXP12-1C-H-BSBS-080	CXP12-1C-H-MBSBS-080	CXP12-1C-H-MBSMBS-080
9	CXP12-1C-H-BSBS-090	CXP12-1C-H-MBSBS-090	CXP12-1C-H-MBSMBS-090
10	CXP12-1C-H-BSBS-100	CXP12-1C-H-MBSBS-100	CXP12-1C-H-MBSMBS-100
ケーブル長(m)	1芯固定長距離両端BNCコネクタ	1芯固定長距離 Micro-BNC／BNC	1芯固定長距離両端Micro-BNC
10	CXP12-1C-L-BSBS-100	CXP12-1C-L-MBSBS-100	CXP12-1C-L-MBSMBS-100
11	CXP12-1C-L-BSBS-110	CXP12-1C-L-MBSBS-110	CXP12-1C-L-MBSMBS-110
12	CXP12-1C-L-BSBS-120	CXP12-1C-L-MBSBS-120	CXP12-1C-L-MBSMBS-120
13	CXP12-1C-L-BSBS-130	CXP12-1C-L-MBSBS-130	CXP12-1C-L-MBSMBS-130
14	CXP12-1C-L-BSBS-140	CXP12-1C-L-MBSBS-140	CXP12-1C-L-MBSMBS-140
15	CXP12-1C-L-BSBS-150	CXP12-1C-L-MBSBS-150	CXP12-1C-L-MBSMBS-150
16	CXP12-1C-L-BSBS-160	CXP12-1C-L-MBSBS-160	CXP12-1C-L-MBSMBS-160
17	CXP12-1C-L-BSBS-170	CXP12-1C-L-MBSBS-170	CXP12-1C-L-MBSMBS-170
18	CXP12-1C-L-BSBS-180	CXP12-1C-L-MBSBS-180	CXP12-1C-L-MBSMBS-180
19	CXP12-1C-L-BSBS-190	CXP12-1C-L-MBSBS-190	CXP12-1C-L-MBSMBS-190
20	CXP12-1C-L-BSBS-200	CXP12-1C-L-MBSBS-200	CXP12-1C-L-MBSMBS-200
ケーブル長(m)	1芯可動高摺動細径両端BNCコネクタ	1芯可動高摺動細径 Micro-BNC／BNC	1芯可動高摺動細径両端Micro-BNC
0.5	-	-	CXP12-1C-K-MBSMBS-005
1	-	-	CXP12-1C-K-MBSMBS-010
2	-	-	CXP12-1C-K-MBSMBS-020
3	-	-	CXP12-1C-K-MBSMBS-030
4	-	-	CXP12-1C-K-MBSMBS-040
5	-	-	CXP12-1C-K-MBSMBS-050
6	-	-	CXP12-1C-K-MBSMBS-060
7	-	-	CXP12-1C-K-MBSMBS-070
ケーブル長(m)	1芯可動標準両端BNCコネクタ	1芯可動標準 Micro-BNC／BNC	1芯可動標準両端Micro-BNC
0.5	CXP12-1C-KH-BSBS-005	CXP12-1C-KH-MBSBS-005	CXP12-1C-KH-MBSMBS-005
1	CXP12-1C-KH-BSBS-010	CXP12-1C-KH-MBSBS-010	CXP12-1C-KH-MBSMBS-010
2	CXP12-1C-KH-BSBS-020	CXP12-1C-KH-MBSBS-020	CXP12-1C-KH-MBSMBS-020
3	CXP12-1C-KH-BSBS-030	CXP12-1C-KH-MBSBS-030	CXP12-1C-KH-MBSMBS-030
4	CXP12-1C-KH-BSBS-040	CXP12-1C-KH-MBSBS-040	CXP12-1C-KH-MBSMBS-040
5	CXP12-1C-KH-BSBS-050	CXP12-1C-KH-MBSBS-050	CXP12-1C-KH-MBSMBS-050
6	CXP12-1C-KH-BSBS-060	CXP12-1C-KH-MBSBS-060	CXP12-1C-KH-MBSMBS-060
7	CXP12-1C-KH-BSBS-070	CXP12-1C-KH-MBSBS-070	CXP12-1C-KH-MBSMBS-070
8	CXP12-1C-KH-BSBS-080	CXP12-1C-KH-MBSBS-080	CXP12-1C-KH-MBSMBS-080
9	CXP12-1C-KH-BSBS-090	CXP12-1C-KH-MBSBS-090	CXP12-1C-KH-MBSMBS-090
ケーブル長(m)	1芯可動高耐久両端BNCコネクタ	1芯可動高耐久 Micro-BNC／BNC	1芯可動高耐久両端Micro-BNC
0.5	CXP12-1C-RA-BSBS-005	CXP12-1C-RA-MBSBS-005	CXP12-1C-RA-MBSMBS-005
1	CXP12-1C-RA-BSBS-010	CXP12-1C-RA-MBSBS-010	CXP12-1C-RA-MBSMBS-010
2	CXP12-1C-RA-BSBS-020	CXP12-1C-RA-MBSBS-020	CXP12-1C-RA-MBSMBS-020
3	CXP12-1C-RA-BSBS-030	CXP12-1C-RA-MBSBS-030	CXP12-1C-RA-MBSMBS-030
4	CXP12-1C-RA-BSBS-040	CXP12-1C-RA-MBSBS-040	CXP12-1C-RA-MBSMBS-040
5	CXP12-1C-RA-BSBS-050	CXP12-1C-RA-MBSBS-050	CXP12-1C-RA-MBSMBS-050
6	CXP12-1C-RA-BSBS-060	CXP12-1C-RA-MBSBS-060	CXP12-1C-RA-MBSMBS-060
7	CXP12-1C-RA-BSBS-070	CXP12-1C-RA-MBSBS-070	CXP12-1C-RA-MBSMBS-070
8	CXP12-1C-RA-BSBS-080	CXP12-1C-RA-MBSBS-080	CXP12-1C-RA-MBSMBS-080
9	CXP12-1C-RA-BSBS-090	CXP12-1C-RA-MBSBS-090	CXP12-1C-RA-MBSMBS-090
10	CXP12-1C-RA-BSBS-100	CXP12-1C-RA-MBSBS-100	CXP12-1C-RA-MBSMBS-100
ケーブル長(m)	4芯固定標準両端BNCコネクタ	4芯固定標準 Micro-BNC／BNC	4芯固定標準両端Micro-BNC
0.5	CXP12-4C-H-BSBS-005	CXP12-4C-H-MBSBS-005	CXP12-4C-H-MBSMBS-005
1	CXP12-4C-H-BSBS-010	CXP12-4C-H-MBSBS-010	CXP12-4C-H-MBSMBS-010
2	CXP12-4C-H-BSBS-020	CXP12-4C-H-MBSBS-020	CXP12-4C-H-MBSMBS-020
3	CXP12-4C-H-BSBS-030	CXP12-4C-H-MBSBS-030	CXP12-4C-H-MBSMBS-030
4	CXP12-4C-H-BSBS-040	CXP12-4C-H-MBSBS-040	CXP12-4C-H-MBSMBS-040
5	CXP12-4C-H-BSBS-050	CXP12-4C-H-MBSBS-050	CXP12-4C-H-MBSMBS-050
6	CXP12-4C-H-BSBS-060	CXP12-4C-H-MBSBS-060	CXP12-4C-H-MBSMBS-060
7	CXP12-4C-H-BSBS-070	CXP12-4C-H-MBSBS-070	CXP12-4C-H-MBSMBS-070
8	CXP12-4C-H-BSBS-080	CXP12-4C-H-MBSBS-080	CXP12-4C-H-MBSMBS-080
9	CXP12-4C-H-BSBS-090	CXP12-4C-H-MBSBS-090	CXP12-4C-H-MBSMBS-090
10	CXP12-4C-H-BSBS-100	CXP12-4C-H-MBSBS-100	CXP12-4C-H-MBSMBS-100
ケーブル長(m)	4芯固定長距離両端BNCコネクタ	4芯固定長距離 Micro-BNC／BNC	4芯固定長距離両端Micro-BNC
10	CXP12-4C-L-BSBS-100	CXP12-4C-L-MBSBS-100	CXP12-4C-L-MBSMBS-100
11	CXP12-4C-L-BSBS-110	CXP12-4C-L-MBSBS-110	CXP12-4C-L-MBSMBS-110
12	CXP12-4C-L-BSBS-120	CXP12-4C-L-MBSBS-120	CXP12-4C-L-MBSMBS-120
13	CXP12-4C-L-BSBS-130	CXP12-4C-L-MBSBS-130	CXP12-4C-L-MBSMBS-130
14	CXP12-4C-L-BSBS-140	CXP12-4C-L-MBSBS-140	CXP12-4C-L-MBSMBS-140
15	CXP12-4C-L-BSBS-150	CXP12-4C-L-MBSBS-150	CXP12-4C-L-MBSMBS-150
16	CXP12-4C-L-BSBS-160	CXP12-4C-L-MBSBS-160	CXP12-4C-L-MBSMBS-160
17	CXP12-4C-L-BSBS-170	CXP12-4C-L-MBSBS-170	CXP12-4C-L-MBSMBS-170
18	CXP12-4C-L-BSBS-180	CXP12-4C-L-MBSBS-180	CXP12-4C-L-MBSMBS-180
19	CXP12-4C-L-BSBS-190	CXP12-4C-L-MBSBS-190	CXP12-4C-L-MBSMBS-190
20	CXP12-4C-L-BSBS-200	CXP12-4C-L-MBSBS-200	CXP12-4C-L-MBSMBS-200
ケーブル長(m)	4芯可動標準両端BNCコネクタ	4芯可動標準 Micro-BNC／BNC	4芯可動標準両端Micro-BNC
0.5	CXP12-4C-KH-BSBS-005	CXP12-4C-KH-MBSBS-005	CXP12-4C-KH-MBSMBS-005
1	CXP12-4C-KH-BSBS-010	CXP12-4C-KH-MBSBS-010	CXP12-4C-KH-MBSMBS-010
2	CXP12-4C-KH-BSBS-020	CXP12-4C-KH-MBSBS-020	CXP12-4C-KH-MBSMBS-020
3	CXP12-4C-KH-BSBS-030	CXP12-4C-KH-MBSBS-030	CXP12-4C-KH-MBSMBS-030
4	CXP12-4C-KH-BSBS-040	CXP12-4C-KH-MBSBS-040	CXP12-4C-KH-MBSMBS-040
5	CXP12-4C-KH-BSBS-050	CXP12-4C-KH-MBSBS-050	CXP12-4C-KH-MBSMBS-050
6	CXP12-4C-KH-BSBS-060	CXP12-4C-KH-MBSBS-060	CXP12-4C-KH-MBSMBS-060
7	CXP12-4C-KH-BSBS-070	CXP12-4C-KH-MBSBS-070	CXP12-4C-KH-MBSMBS-070
8	CXP12-4C-KH-BSBS-080	CXP12-4C-KH-MBSBS-080	CXP12-4C-KH-MBSMBS-080
9	CXP12-4C-KH-BSBS-090	CXP12-4C-KH-MBSBS-090	CXP12-4C-KH-MBSMBS-090
ケーブル長(m)	4芯可動高耐久両端BNCコネクタ	4芯可動高耐久 Micro-BNC／BNC	4芯可動高耐久両端Micro-BNC
0.5	CXP12-4C-RA-BSBS-005	CXP12-4C-RA-MBSBS-005	CXP12-4C-RA-MBSMBS-005
1	CXP12-4C-RA-BSBS-010	CXP12-4C-RA-MBSBS-010	CXP12-4C-RA-MBSMBS-010
2	CXP12-4C-RA-BSBS-020	CXP12-4C-RA-MBSBS-020	CXP12-4C-RA-MBSMBS-020
3	CXP12-4C-RA-BSBS-030	CXP12-4C-RA-MBSBS-030	CXP12-4C-RA-MBSMBS-030
4	CXP12-4C-RA-BSBS-040	CXP12-4C-RA-MBSBS-040	CXP12-4C-RA-MBSMBS-040
5	CXP12-4C-RA-BSBS-050	CXP12-4C-RA-MBSBS-050	CXP12-4C-RA-MBSMBS-050
6	CXP12-4C-RA-BSBS-060	CXP12-4C-RA-MBSBS-060	CXP12-4C-RA-MBSMBS-060
7	CXP12-4C-RA-BSBS-070	CXP12-4C-RA-MBSBS-070	CXP12-4C-RA-MBSMBS-070
8	CXP12-4C-RA-BSBS-080	CXP12-4C-RA-MBSBS-080	CXP12-4C-RA-MBSMBS-080
9	CXP12-4C-RA-BSBS-090	CXP12-4C-RA-MBSBS-090	CXP12-4C-RA-MBSMBS-090
10	CXP12-4C-RA-BSBS-100	CXP12-4C-RA-MBSBS-100	CXP12-4C-RA-MBSMBS-100

PW-110SBH

CABLE SHOP NISHO JAPAN — 2026-06-10T17:41:02+09:00

■Kuramo Electric

■Sales unit
　Cut：10m or more in 1m units *Orders cannot be made for less than 10m.
　Roll：1roll=100m

■L/T：1〜2Weeks　　　　
　If not in stock, L/T is 1〜2 months.

■FA network cable compatible with CC-Link Ver.1.10

PW110SBH: Composite type with built-in power line (oil-resistant, heat-resistant (75℃), UL/cUL AWM standard compliant)

■Manufacturer's website
https://www.kuramo.co.jp/products_pdf/fanc.pdf

GVIF/GMSL compliant Machine Vision Cable with FAKRA Connectors

CABLE SHOP NISHO JAPAN — 2026-06-10T16:10:45+09:00

Manufacturer: OKI Electric Cable
Minimum Order Quantity: 1 unit
Made to Order
*Delivery time varies depending on the product and quantity; please inquire.

◇Manufacturer's website
https://www.okidensen.co.jp/en/prod/cable/movable/index_fakra.html

Overview
FAKRA is one of German standards and the connector specification used as a standard interface for telematics applications in automobiles. It supports high-speed in-vehicle LVDS standards such as GVIF and GMSL.

Features
FAKRA connectors as the standard interface for high-frequency telematics applications in automobiles, and achieves IPX7 waterproof performance.
Cables for fixed wiring, as well as for sliding and movable wiring. Up to 4 cables can beconnected and max 15 meters are supported. This allows you to separate wiring for fixed andmovable sections, which improves maintainability.

Product name
FKR(CX) - (1) - (2) - (3) - (4)
(1) Cable Type Code　　　　Fixed Wiring: H　　Movable Wiring: K
(2) Connector Combination　Code Both Ends Plug: PZPZ　　Jack / Plug: JZPZ
(3) Waterproof　　　　　　　With waterproof: WP　　Without waterproof: Not indicated
(4) Cable Length　　　　　　Example codes　3m: 030　　15m: 150 Specifications

Coaxial cable with FAKRA connector

Jack (left) and plug (right)

Cable for machines with FAKRA connector: movable (left) and fixed (right)

◇Example of product name

Length(m)	固定配線両端プラグ防水	固定配線ジャック/プラグ防水	固定配線両端ジャック防水
0.5	FKR(CX)-H-PZPZ-WP-005	FKR(CX)-H-JZPZ-WP-005	FKR(CX)-H-JZJZ-WP-005
1	FKR(CX)-H-PZPZ-WP-010	FKR(CX)-H-JZPZ-WP-010	FKR(CX)-H-JZJZ-WP-010
2	FKR(CX)-H-PZPZ-WP-020	FKR(CX)-H-JZPZ-WP-020	FKR(CX)-H-JZJZ-WP-020
3	FKR(CX)-H-PZPZ-WP-030	FKR(CX)-H-JZPZ-WP-030	FKR(CX)-H-JZJZ-WP-030
4	FKR(CX)-H-PZPZ-WP-040	FKR(CX)-H-JZPZ-WP-040	FKR(CX)-H-JZJZ-WP-040
5	FKR(CX)-H-PZPZ-WP-050	FKR(CX)-H-JZPZ-WP-050	FKR(CX)-H-JZJZ-WP-050
6	FKR(CX)-H-PZPZ-WP-060	FKR(CX)-H-JZPZ-WP-060	FKR(CX)-H-JZJZ-WP-060
7	FKR(CX)-H-PZPZ-WP-070	FKR(CX)-H-JZPZ-WP-070	FKR(CX)-H-JZJZ-WP-070
8	FKR(CX)-H-PZPZ-WP-080	FKR(CX)-H-JZPZ-WP-080	FKR(CX)-H-JZJZ-WP-080
9	FKR(CX)-H-PZPZ-WP-090	FKR(CX)-H-JZPZ-WP-090	FKR(CX)-H-JZJZ-WP-090
10	FKR(CX)-H-PZPZ-WP-100	FKR(CX)-H-JZPZ-WP-100	FKR(CX)-H-JZJZ-WP-100
11	FKR(CX)-H-PZPZ-WP-110	FKR(CX)-H-JZPZ-WP-110	FKR(CX)-H-JZJZ-WP-110
12	FKR(CX)-H-PZPZ-WP-120	FKR(CX)-H-JZPZ-WP-120	FKR(CX)-H-JZJZ-WP-120
13	FKR(CX)-H-PZPZ-WP-130	FKR(CX)-H-JZPZ-WP-130	FKR(CX)-H-JZJZ-WP-130
14	FKR(CX)-H-PZPZ-WP-140	FKR(CX)-H-JZPZ-WP-140	FKR(CX)-H-JZJZ-WP-140
15	FKR(CX)-H-PZPZ-WP-150	FKR(CX)-H-JZPZ-WP-150	FKR(CX)-H-JZJZ-WP-150

Length(m)	固定配線両端プラグ非防水	固定配線ジャック/プラグ非防水	固定配線両端ジャック非防水
0.5	FKR(CX)-H-PZPZ-005	FKR(CX)-H-JZPZ-005	FKR(CX)-H-JZJZ-005
1	FKR(CX)-H-PZPZ-010	FKR(CX)-H-JZPZ-010	FKR(CX)-H-JZJZ-010
2	FKR(CX)-H-PZPZ-020	FKR(CX)-H-JZPZ-020	FKR(CX)-H-JZJZ-020
3	FKR(CX)-H-PZPZ-030	FKR(CX)-H-JZPZ-030	FKR(CX)-H-JZJZ-030
4	FKR(CX)-H-PZPZ-040	FKR(CX)-H-JZPZ-040	FKR(CX)-H-JZJZ-040
5	FKR(CX)-H-PZPZ-050	FKR(CX)-H-JZPZ-050	FKR(CX)-H-JZJZ-050
6	FKR(CX)-H-PZPZ-060	FKR(CX)-H-JZPZ-060	FKR(CX)-H-JZJZ-060
7	FKR(CX)-H-PZPZ-070	FKR(CX)-H-JZPZ-070	FKR(CX)-H-JZJZ-070
8	FKR(CX)-H-PZPZ-080	FKR(CX)-H-JZPZ-080	FKR(CX)-H-JZJZ-080
9	FKR(CX)-H-PZPZ-090	FKR(CX)-H-JZPZ-090	FKR(CX)-H-JZJZ-090
10	FKR(CX)-H-PZPZ-100	FKR(CX)-H-JZPZ-100	FKR(CX)-H-JZJZ-100
11	FKR(CX)-H-PZPZ-110	FKR(CX)-H-JZPZ-110	FKR(CX)-H-JZJZ-110
12	FKR(CX)-H-PZPZ-120	FKR(CX)-H-JZPZ-120	FKR(CX)-H-JZJZ-120
13	FKR(CX)-H-PZPZ-130	FKR(CX)-H-JZPZ-130	FKR(CX)-H-JZJZ-130
14	FKR(CX)-H-PZPZ-140	FKR(CX)-H-JZPZ-140	FKR(CX)-H-JZJZ-140
15	FKR(CX)-H-PZPZ-150	FKR(CX)-H-JZPZ-150	FKR(CX)-H-JZJZ-150

Length(m)	可動配線両端プラグ防水	可動配線ジャック/プラグ防水	可動配線両端ジャック防水
0.5	FKR(CX)-K-PZPZ-WP-005	FKR(CX)-K-JZPZ-WP-005	FKR(CX)-K-JZJZ-WP-005
1	FKR(CX)-K-PZPZ-WP-010	FKR(CX)-K-JZPZ-WP-010	FKR(CX)-K-JZJZ-WP-010
2	FKR(CX)-K-PZPZ-WP-020	FKR(CX)-K-JZPZ-WP-020	FKR(CX)-K-JZJZ-WP-020
3	FKR(CX)-K-PZPZ-WP-030	FKR(CX)-K-JZPZ-WP-030	FKR(CX)-K-JZJZ-WP-030
4	FKR(CX)-K-PZPZ-WP-040	FKR(CX)-K-JZPZ-WP-040	FKR(CX)-K-JZJZ-WP-040
5	FKR(CX)-K-PZPZ-WP-050	FKR(CX)-K-JZPZ-WP-050	FKR(CX)-K-JZJZ-WP-050

Length(m)	可動配線両端プラグ非防水	可動配線ジャック/プラグ非防水	可動配線両端ジャック非防水
0.5	FKR(CX)-K-PZPZ-005	FKR(CX)-K-JZPZ-005	FKR(CX)-K-JZJZ-005
1	FKR(CX)-K-PZPZ-010	FKR(CX)-K-JZPZ-010	FKR(CX)-K-JZJZ-010
2	FKR(CX)-K-PZPZ-020	FKR(CX)-K-JZPZ-020	FKR(CX)-K-JZJZ-020
3	FKR(CX)-K-PZPZ-030	FKR(CX)-K-JZPZ-030	FKR(CX)-K-JZJZ-030
4	FKR(CX)-K-PZPZ-040	FKR(CX)-K-JZPZ-040	FKR(CX)-K-JZJZ-040
5	FKR(CX)-K-PZPZ-050	FKR(CX)-K-JZPZ-050	FKR(CX)-K-JZJZ-050

CoaXPress Ver1.0 Cables　CXP6 Series

CABLE SHOP NISHO JAPAN — 2026-06-10T16:04:31+09:00

Manufacturer: OKI Electric Cable
Minimum Lot: 1 unit
Made to order.
*Delivery times vary depending on product and quantity. Please inquire.

◇Manufacturer Website
https://www.okidensen.co.jp/en/prod/cable/movable/coaxpress-cxp6.html

Overview
It supports the transmission speed of 6.25 Gbps per lane and the maximum high speed transmission up to 25 Gbps with 4 lanes. There are 8 types are in total : single and quad core for each of fixed wiring use(thin/standard)and movable wiring use(thin/standard).

Features
Supports a transmission speed of 6.25 Gbps/lane.
Supports high-speed transmission of up to 25 Gbps with a 4-lane connection.
The lineup includes four types: standard and small-diameter options, which can be selected according to the transmission distance. These options cater to both fixed and movable wiring, ensuring suitability for various applications.
The connectors are compatible with BNC and DIN types.
Movement durability: 3 million sliding cycles or more (see performance table)

Prouduct name
CXP6 - (1) - (2) - (3) - (4)
(1): Number of cores
1- core: 1C 4- core: 4C

(2): Cable type symbol
Fixed small-diameter: S / Fixed standard: H / Movable small-diameter: KS / Movable standard: KH

(3): Connector combination symbol
BNC connectors on both ends: BSBS / BNC/DIN connectors: BSDS / DIN connectors on both ends: DSDS

(4): Cable length
Symbol examples: 0.5 m: 005 / 1 m: 010 / 10 m: 100

◇Example of product name

Cable length(m)	1芯固定細径両端BNCコネクタ	1芯固定細径 BNC-DINコネクタ	1芯固定細径両端DINコネクタ
0.5	CXP6-1C-S-BSBS-005	CXP6-1C-S-BSDS-005	CXP6-1C-S-DSDS-005
1	CXP6-1C-S-BSBS-010	CXP6-1C-S-BSDS-010	CXP6-1C-S-DSDS-010
2	CXP6-1C-S-BSBS-020	CXP6-1C-S-BSDS-020	CXP6-1C-S-DSDS-020
3	CXP6-1C-S-BSBS-030	CXP6-1C-S-BSDS-030	CXP6-1C-S-DSDS-030
4	CXP6-1C-S-BSBS-040	CXP6-1C-S-BSDS-040	CXP6-1C-S-DSDS-040
5	CXP6-1C-S-BSBS-050	CXP6-1C-S-BSDS-050	CXP6-1C-S-DSDS-050

Cable length(m)	1芯固定標準両端BNCコネクタ	1芯固定標準 BNC-DINコネクタ	1芯固定標準両端DINコネクタ
0.5	CXP6-1C-H-BSBS-005	CXP6-1C-H-BSDS-005	CXP6-1C-H-DSDS-005
1	CXP6-1C-H-BSBS-010	CXP6-1C-H-BSDS-010	CXP6-1C-H-DSDS-010
2	CXP6-1C-H-BSBS-020	CXP6-1C-H-BSDS-020	CXP6-1C-H-DSDS-020
3	CXP6-1C-H-BSBS-030	CXP6-1C-H-BSDS-030	CXP6-1C-H-DSDS-030
4	CXP6-1C-H-BSBS-040	CXP6-1C-H-BSDS-040	CXP6-1C-H-DSDS-040
5	CXP6-1C-H-BSBS-050	CXP6-1C-H-BSDS-050	CXP6-1C-H-DSDS-050
6	CXP6-1C-H-BSBS-060	CXP6-1C-H-BSDS-060	CXP6-1C-H-DSDS-060
7	CXP6-1C-H-BSBS-070	CXP6-1C-H-BSDS-070	CXP6-1C-H-DSDS-070
8	CXP6-1C-H-BSBS-080	CXP6-1C-H-BSDS-080	CXP6-1C-H-DSDS-080
9	CXP6-1C-H-BSBS-090	CXP6-1C-H-BSDS-090	CXP6-1C-H-DSDS-090
10	CXP6-1C-H-BSBS-100	CXP6-1C-H-BSDS-100	CXP6-1C-H-DSDS-100
11	CXP6-1C-H-BSBS-110	CXP6-1C-H-BSDS-110	CXP6-1C-H-DSDS-110
12	CXP6-1C-H-BSBS-120	CXP6-1C-H-BSDS-120	CXP6-1C-H-DSDS-120
13	CXP6-1C-H-BSBS-130	CXP6-1C-H-BSDS-130	CXP6-1C-H-DSDS-130
14	CXP6-1C-H-BSBS-140	CXP6-1C-H-BSDS-140	CXP6-1C-H-DSDS-140
15	CXP6-1C-H-BSBS-150	CXP6-1C-H-BSDS-150	CXP6-1C-H-DSDS-150

Cable length(m)	1芯可動細径両端BNCコネクタ	1芯可動細径 BNC-DINコネクタ	1芯可動細径両端DINコネクタ
0.5	CXP6-1C-KS-BSBS-005	CXP6-1C-KS-BSDS-005	CXP6-1C-KS-DSDS-005
1	CXP6-1C-KS-BSBS-010	CXP6-1C-KS-BSDS-010	CXP6-1C-KS-DSDS-010
2	CXP6-1C-KS-BSBS-020	CXP6-1C-KS-BSDS-020	CXP6-1C-KS-DSDS-020
3	CXP6-1C-KS-BSBS-030	CXP6-1C-KS-BSDS-030	CXP6-1C-KS-DSDS-030
4	CXP6-1C-KS-BSBS-040	CXP6-1C-KS-BSDS-040	CXP6-1C-KS-DSDS-040
5	CXP6-1C-KS-BSBS-050	CXP6-1C-KS-BSDS-050	CXP6-1C-KS-DSDS-050

Cable length(m)	1芯可動標準両端BNCコネクタ	1芯可動標準 BNC-DINコネクタ	1芯可動標準両端DINコネクタ
0.5	CXP6-1C-KH-BSBS-005	CXP6-1C-KH-BSDS-005	CXP6-1C-KH-DSDS-005
1	CXP6-1C-KH-BSBS-010	CXP6-1C-KH-BSDS-010	CXP6-1C-KH-DSDS-010
2	CXP6-1C-KH-BSBS-020	CXP6-1C-KH-BSDS-020	CXP6-1C-KH-DSDS-020
3	CXP6-1C-KH-BSBS-030	CXP6-1C-KH-BSDS-030	CXP6-1C-KH-DSDS-030
4	CXP6-1C-KH-BSBS-040	CXP6-1C-KH-BSDS-040	CXP6-1C-KH-DSDS-040
5	CXP6-1C-KH-BSBS-050	CXP6-1C-KH-BSDS-050	CXP6-1C-KH-DSDS-050
6	CXP6-1C-KH-BSBS-060	CXP6-1C-KH-BSDS-060	CXP6-1C-KH-DSDS-060
7	CXP6-1C-KH-BSBS-070	CXP6-1C-KH-BSDS-070	CXP6-1C-KH-DSDS-070
8	CXP6-1C-KH-BSBS-080	CXP6-1C-KH-BSDS-080	CXP6-1C-KH-DSDS-080
9	CXP6-1C-KH-BSBS-090	CXP6-1C-KH-BSDS-090	CXP6-1C-KH-DSDS-090
10	CXP6-1C-KH-BSBS-100	CXP6-1C-KH-BSDS-100	CXP6-1C-KH-DSDS-100
11	CXP6-1C-KH-BSBS-110	CXP6-1C-KH-BSDS-110	CXP6-1C-KH-DSDS-110
12	CXP6-1C-KH-BSBS-120	CXP6-1C-KH-BSDS-120	CXP6-1C-KH-DSDS-120
13	CXP6-1C-KH-BSBS-130	CXP6-1C-KH-BSDS-130	CXP6-1C-KH-DSDS-130
14	CXP6-1C-KH-BSBS-140	CXP6-1C-KH-BSDS-140	CXP6-1C-KH-DSDS-140
15	CXP6-1C-KH-BSBS-150	CXP6-1C-KH-BSDS-150	CXP6-1C-KH-DSDS-150

Cable length(m)	4芯固定細径両端BNCコネクタ	4芯固定細径 BNC-DINコネクタ	4芯固定細径両端DINコネクタ
0.5	CXP6-4C-S-BSBS-005	CXP6-4C-S-BSDS-005	CXP6-4C-S-DSDS-005
1	CXP6-4C-S-BSBS-010	CXP6-4C-S-BSDS-010	CXP6-4C-S-DSDS-010
2	CXP6-4C-S-BSBS-020	CXP6-4C-S-BSDS-020	CXP6-4C-S-DSDS-020
3	CXP6-4C-S-BSBS-030	CXP6-4C-S-BSDS-030	CXP6-4C-S-DSDS-030
4	CXP6-4C-S-BSBS-040	CXP6-4C-S-BSDS-040	CXP6-4C-S-DSDS-040
5	CXP6-4C-S-BSBS-050	CXP6-4C-S-BSDS-050	CXP6-4C-S-DSDS-050

Cable length(m)	4芯固定標準両端BNCコネクタ	4芯固定標準 BNC-DINコネクタ	4芯固定標準両端DINコネクタ
0.5	CXP6-4C-H-BSBS-005	CXP6-4C-H-BSDS-005	CXP6-4C-H-DSDS-005
1	CXP6-4C-H-BSBS-010	CXP6-4C-H-BSDS-010	CXP6-4C-H-DSDS-010
2	CXP6-4C-H-BSBS-020	CXP6-4C-H-BSDS-020	CXP6-4C-H-DSDS-020
3	CXP6-4C-H-BSBS-030	CXP6-4C-H-BSDS-030	CXP6-4C-H-DSDS-030
4	CXP6-4C-H-BSBS-040	CXP6-4C-H-BSDS-040	CXP6-4C-H-DSDS-040
5	CXP6-4C-H-BSBS-050	CXP6-4C-H-BSDS-050	CXP6-4C-H-DSDS-050
6	CXP6-4C-H-BSBS-060	CXP6-4C-H-BSDS-060	CXP6-4C-H-DSDS-060
7	CXP6-4C-H-BSBS-070	CXP6-4C-H-BSDS-070	CXP6-4C-H-DSDS-070
8	CXP6-4C-H-BSBS-080	CXP6-4C-H-BSDS-080	CXP6-4C-H-DSDS-080
9	CXP6-4C-H-BSBS-090	CXP6-4C-H-BSDS-090	CXP6-4C-H-DSDS-090
10	CXP6-4C-H-BSBS-100	CXP6-4C-H-BSDS-100	CXP6-4C-H-DSDS-100
11	CXP6-4C-H-BSBS-110	CXP6-4C-H-BSDS-110	CXP6-4C-H-DSDS-110
12	CXP6-4C-H-BSBS-120	CXP6-4C-H-BSDS-120	CXP6-4C-H-DSDS-120
13	CXP6-4C-H-BSBS-130	CXP6-4C-H-BSDS-130	CXP6-4C-H-DSDS-130
14	CXP6-4C-H-BSBS-140	CXP6-4C-H-BSDS-140	CXP6-4C-H-DSDS-140
15	CXP6-4C-H-BSBS-150	CXP6-4C-H-BSDS-150	CXP6-4C-H-DSDS-150

Cable length(m)	4芯可動細径両端BNCコネクタ	4芯可動細径 BNC-DINコネクタ	4芯可動細径両端DINコネクタ
0.5	CXP6-4C-KS-BSBS-005	CXP6-4C-KS-BSDS-005	CXP6-4C-KS-DSDS-005
1	CXP6-4C-KS-BSBS-010	CXP6-4C-KS-BSDS-010	CXP6-4C-KS-DSDS-010
2	CXP6-4C-KS-BSBS-020	CXP6-4C-KS-BSDS-020	CXP6-4C-KS-DSDS-020
3	CXP6-4C-KS-BSBS-030	CXP6-4C-KS-BSDS-030	CXP6-4C-KS-DSDS-030
4	CXP6-4C-KS-BSBS-040	CXP6-4C-KS-BSDS-040	CXP6-4C-KS-DSDS-040
5	CXP6-4C-KS-BSBS-050	CXP6-4C-KS-BSDS-050	CXP6-4C-KS-DSDS-050

Cable length(m)	4芯可動標準両端BNCコネクタ	4芯可動標準 BNC-DINコネクタ	4芯可動標準両端DINコネクタ
0.5	CXP6-4C-KH-BSBS-005	CXP6-4C-KH-BSDS-005	CXP6-4C-KH-DSDS-005
1	CXP6-4C-KH-BSBS-010	CXP6-4C-KH-BSDS-010	CXP6-4C-KH-DSDS-010
2	CXP6-4C-KH-BSBS-020	CXP6-4C-KH-BSDS-020	CXP6-4C-KH-DSDS-020
3	CXP6-4C-KH-BSBS-030	CXP6-4C-KH-BSDS-030	CXP6-4C-KH-DSDS-030
4	CXP6-4C-KH-BSBS-040	CXP6-4C-KH-BSDS-040	CXP6-4C-KH-DSDS-040
5	CXP6-4C-KH-BSBS-050	CXP6-4C-KH-BSDS-050	CXP6-4C-KH-DSDS-050
6	CXP6-4C-KH-BSBS-060	CXP6-4C-KH-BSDS-060	CXP6-4C-KH-DSDS-060
7	CXP6-4C-KH-BSBS-070	CXP6-4C-KH-BSDS-070	CXP6-4C-KH-DSDS-070
8	CXP6-4C-KH-BSBS-080	CXP6-4C-KH-BSDS-080	CXP6-4C-KH-DSDS-080
9	CXP6-4C-KH-BSBS-090	CXP6-4C-KH-BSDS-090	CXP6-4C-KH-DSDS-090
10	CXP6-4C-KH-BSBS-100	CXP6-4C-KH-BSDS-100	CXP6-4C-KH-DSDS-100
11	CXP6-4C-KH-BSBS-110	CXP6-4C-KH-BSDS-110	CXP6-4C-KH-DSDS-110
12	CXP6-4C-KH-BSBS-120	CXP6-4C-KH-BSDS-120	CXP6-4C-KH-DSDS-120
13	CXP6-4C-KH-BSBS-130	CXP6-4C-KH-BSDS-130	CXP6-4C-KH-DSDS-130
14	CXP6-4C-KH-BSBS-140	CXP6-4C-KH-BSDS-140	CXP6-4C-KH-DSDS-140
15	CXP6-4C-KH-BSBS-150	CXP6-4C-KH-BSDS-150	CXP6-4C-KH-DSDS-150

UL1007 AWG20

CABLE SHOP NISHO JAPAN — 2026-06-08T14:24:32+09:00

■KHD

■Sales unit: 100m or 610m

■L/T：1〜2Weeks　　　　
　If not in stock, L/T is 1〜2 months.

■100m roll cut products are not compatible with the UL Processed Wire Program.

■Manufacturer website
https://www.khd.co.jp/product/
https://www.khd.co.jp/assets/product/pdf00000079.pdf

UL1007 AWG22

CABLE SHOP NISHO JAPAN — 2026-06-08T14:21:55+09:00

UL1007 AWG24

CABLE SHOP NISHO JAPAN — 2026-06-08T14:17:26+09:00

UL1007 AWG22

CABLE SHOP NISHO JAPAN — 2026-05-27T13:54:00+09:00

■Shinagawa Electric Wire

■Sales unit: 305m

■L/T：1〜2Weeks　　　　
　If not in stock, L/T is 1〜2 months.

■100m roll cut products are not compatible with the UL Processed Wire Program.

■Manufacturer website
http://shinagawa-wire.co.jp/product/
http://shinagawa-wire.co.jp/pdf_2025/1007.pdf

UL1283 AWG2　Black

CABLE SHOP NISHO JAPAN — 2026-05-26T15:57:38+09:00

■Shinagawa Electric Wire

■Sales unit: 153m

■L/T：1〜2Weeks　　　　
　If not in stock, L/T is 1〜2 months.

■100m roll cut products are not compatible with the UL Processed Wire Program.

■Manufacturer website
http://shinagawa-wire.co.jp/product/
http://shinagawa-wire.co.jp/pdf_2025/1015_1283_1284.pdf

UL1283 AWG4

CABLE SHOP NISHO JAPAN — 2026-05-26T15:57:37+09:00

UL1283 AWG6

CABLE SHOP NISHO JAPAN — 2026-05-26T15:57:37+09:00

UL1283 AWG8

CABLE SHOP NISHO JAPAN — 2026-05-26T15:57:37+09:00

UL1015 AWG10

CABLE SHOP NISHO JAPAN — 2026-05-26T15:49:42+09:00

UL1015 AWG12

CABLE SHOP NISHO JAPAN — 2026-05-26T15:49:42+09:00

UL1015 AWG14

CABLE SHOP NISHO JAPAN — 2026-05-26T15:49:42+09:00

UL1015 AWG16

CABLE SHOP NISHO JAPAN — 2026-05-26T15:49:42+09:00

UL1015 AWG18

CABLE SHOP NISHO JAPAN — 2026-05-26T15:49:42+09:00

UL1015 AWG20

CABLE SHOP NISHO JAPAN — 2026-05-26T15:49:42+09:00

UL1015 AWG22

CABLE SHOP NISHO JAPAN — 2026-05-26T15:49:42+09:00

UL1007 AWG16

CABLE SHOP NISHO JAPAN — 2026-05-26T15:41:41+09:00

UL1007 AWG18

CABLE SHOP NISHO JAPAN — 2026-05-26T15:41:41+09:00

UL1007 AWG20

CABLE SHOP NISHO JAPAN — 2026-05-26T15:41:41+09:00

UL1007 AWG24

CABLE SHOP NISHO JAPAN — 2026-05-26T15:41:41+09:00

UL1007 AWG26

CABLE SHOP NISHO JAPAN — 2026-05-26T15:41:41+09:00

UL1007 AWG28

CABLE SHOP NISHO JAPAN — 2026-05-26T15:41:41+09:00

UL1015 AWG10

CABLE SHOP NISHO JAPAN — 2026-05-26T15:33:50+09:00

■KHD

■Sales unit: 100m or 153m

■L/T：1〜2Weeks　　　　
　If not in stock, L/T is 1〜2 months.

■100m roll cut products are not compatible with the UL Processed Wire Program.

■Manufacturer website
https://www.khd.co.jp/product/
https://www.khd.co.jp/assets/product/pdf00000080.pdf

UL1015 AWG12

CABLE SHOP NISHO JAPAN — 2026-05-26T15:33:50+09:00

UL1015 AWG14

CABLE SHOP NISHO JAPAN — 2026-05-26T15:33:50+09:00

UL1015 AWG16

CABLE SHOP NISHO JAPAN — 2026-05-26T15:33:49+09:00

■KHD

■Sales unit: 100m or 305m

■L/T：1〜2Weeks　　　　
　If not in stock, L/T is 1〜2 months.

■100m roll cut products are not compatible with the UL Processed Wire Program.

■Manufacturer website
https://www.khd.co.jp/product/
https://www.khd.co.jp/assets/product/pdf00000080.pdf

UL1015 AWG18

CABLE SHOP NISHO JAPAN — 2026-05-26T15:33:49+09:00

UL1015 AWG20

CABLE SHOP NISHO JAPAN — 2026-05-26T15:33:49+09:00

UL1015 AWG22

CABLE SHOP NISHO JAPAN — 2026-05-26T15:33:49+09:00

UL1007 AWG16

CABLE SHOP NISHO JAPAN — 2026-05-26T15:21:10+09:00

UL1007 AWG18

CABLE SHOP NISHO JAPAN — 2026-05-26T15:21:10+09:00

UL1007 AWG26

CABLE SHOP NISHO JAPAN — 2026-05-26T15:21:10+09:00

UL1007 AWG28

CABLE SHOP NISHO JAPAN — 2026-05-26T15:21:10+09:00

15KV N-EV

CABLE SHOP NISHO JAPAN — 2026-05-26T13:25:44+09:00

■Riken Cable Technology
　
■1 roll = 100m　

■Sheath color: gray

■L/T: 1-2 Weeks
　　If not in stock, L/T is 1〜2 months.

■This amount doesn't include shipping fees.

■Riken Cable Technology　Web Site
https://www.rikencabletechnology.co.jp/

ESPC 0.5SQ×1P

CABLE SHOP NISHO JAPAN — 2026-05-26T10:52:14+09:00

■Nagaoka Electric Wire

■Sales unit
　Cut：10m or more in 1m units *Orders cannot be made for less than 10m.
　Roll：1roll=100m

■L/T：1〜2Weeks　　　　
　If not in stock, L/T is 1〜2 months.

■ESPC 0.5SQ×1P　Omron Controller Link Cable

Considering the usage environment in factories, this high-spec cable is heat-resistant , flame-retardant , and oil-resistant , and is also non-migratory to ABS resin and other resins . Its flame-retardant performance is equivalent to VW-1 . Considering the ease of use during terminal processing, the filler is a single-core filler , which helps improve workability and processing speed without scattering as in the past. This cable has high specifications, but is also easy to use and has excellent cost performance .

This cable has been recommended by Omron Corporation as a cable for building their FA network ( Controller Link ). It is also suitable for signal transmission of RS-422 and RS-485 (characteristic impedance 100Ω system).

The high-density shielded and twisted pair structure provides excellent noise resistance .

RoHS2 compliant

It has excellent flexibility and is easy to handle during processing and wiring.

Rated voltage：Less than 100V
Rated Temperature：Below 75℃
Sheath Color：Black

Main Applications
・As a cable for Omron Corporation's Controller Link.
・For RS-422 and RS-485 signal transmission (impedance 100 Ω system).
・For wiring around noise-generating devices.

■Manufacturer's website
https://www.e-nagaoka.com/hinmoku/espc/index.htm

ORP-SL 0.2SQ×6P(SB)(2464)

CABLE SHOP NISHO JAPAN — 2026-05-26T10:38:49+09:00

■Oki Electric Cable Co., Ltd．

■ORP slim Cable Series With shielding UL2464 80℃ 300V

■Sales unit：10m Units　　　
　Please purchase in multiples of 10m.

■L/T：1〜2Weeks
　　If not in stock, L/T is 1〜2 months.

■Link to the catalog page by clicking the image.

■Oki Electric Cable Web Site
https://www.okidensen.co.jp/en/prod/cable/robot/orpsl.html

NPC-MS500 8SQ

CABLE SHOP NISHO JAPAN — 2026-05-26T10:30:38+09:00

■Ninomiya Electric Wire

■Sales unit：10m Units　　　
　Please purchase in multiples of 10m.

■L/T：1〜2Weeks　　　　
　If not in stock, L/T is 1〜2 months.

■Silica-glass-yarn braided Nickel-clad-copper-conductor Wire: NPC-MS500

Compliant with RoHS2
Max. operating temp:500℃
Rated voltage:600V

NPC-MS500 is a super heat-resistant wire, the conductors of which are heat-resistant and corrosion-resistant as well as flexible nickel-clad-copper-conductor wire wrapped in glass-mica tape coated with silica-glass fiber. High-performance coating, which is light yellow and excels in insulating characteristics, is applied to the insulation of NPC-MS500. NPC-MS500 is manufactured according to the NINOMIYA Standards.

Features of nickel-clad-copper-conductor wire
The conductor resistance of nickel-clad-copper-conductor wire is about a quarter (1/4) of that of nickel-conductor wire; therefore the former can be thinner in diameter and lighter than the latter while the allowable current value of the former is the same as that of the latter.
Since nickel-clad-copper-conductor wire is more flexible than nickel-conductor wire, it can be easily processed and routed.
The nickel plate is 20 to 30 times as thick as conventional nickel plate (1 to 5μm). Note that the area ratio between nickel and copper is about 28:72.
Since the surface of nickel-clad-copper-conductor wire is nickel, it is more corrosion-resistant than copper wire.
Its electric conductivity changes over time. However, about 60% of the electric conductivity is maintained even after the nickel-clad-copper-conductor wire is used at a temperature of 400℃ for three consecutive years.

Features of NPC-MS500 series products
The maximum operating temperature is 500℃, and the rated voltage is 600V!
NPC-MS500 series products are superior in insulating characteristics and heat resistance to TM430 series products.

Applications
NPC-MS500 series products are used for applications such as the lead wire in an electric heater, which must be highly resistant to heat as well as corrosion, and wire in high-temperature equipment.

■Manufacturer's website
https://ninomiya-ew.co.jp/en/product/hrw_npc-ms500/

NPC-MS500 5.5SQ

CABLE SHOP NISHO JAPAN — 2026-05-26T10:30:38+09:00

■Manufacturer's website
https://ninomiya-ew.co.jp/en/product/hrw_npc-ms500/

NPC-MS500 3.5SQ

CABLE SHOP NISHO JAPAN — 2026-05-26T10:30:38+09:00

■Manufacturer's website
https://ninomiya-ew.co.jp/en/product/hrw_npc-ms500/

NPC-MS500 2SQ

CABLE SHOP NISHO JAPAN — 2026-05-26T10:30:38+09:00

■Manufacturer's website
https://ninomiya-ew.co.jp/en/product/hrw_npc-ms500/

NPC-MS500 1.25SQ

CABLE SHOP NISHO JAPAN — 2026-05-26T10:30:38+09:00

■Manufacturer's website
https://ninomiya-ew.co.jp/en/product/hrw_npc-ms500/

NPC-MS500 0.75SQ

CABLE SHOP NISHO JAPAN — 2026-05-26T10:30:38+09:00

■Manufacturer's website
https://ninomiya-ew.co.jp/en/product/hrw_npc-ms500/

NI-MS500 8SQ

CABLE SHOP NISHO JAPAN — 2026-05-26T10:24:37+09:00

■Ninomiya Electric Wire

■Sales unit：10m Units　　　
　Please purchase in multiples of 10m.

■L/T：1〜2Weeks　　　　
　If not in stock, L/T is 1〜2 months.

■Silica-glass-yarn braided Nickel-conductor Wire: NI-MS500

Compliant with RoHS2
Max. operating temp:500℃
Rated voltage:600V

Nl-MS500 is a super heat-resistant wire, the conductors of which are heat-resistant and corrosion-resistant nickel-conductor wire wrapped in glass-mica tape coated with silica-glass fiber. High-performance coating, which is light yellow and excels in insulating characteristics, is applied to the insulation of NI-MS500.

Features of nickel-conductor wire
Nickel-conductor wire is strongly resistant to corrosion as well as heat, does not greatly deteriorate with age, and achieves satisfactory machine performance.

Features of Nl-MS500 series products
The maximum operating temperature is 500℃, and the rated voltage is 600V!
Nl-MS500 series products are superior in insulating characteristics and heat resistance to TM450 series products.

Applications
Nl-MS500 series products are used for applications such as the lead wire in an electric heater, which must be highly resistant to heat as well as corrosion, and wire in high-temperature equipment.

■Manufacturer's website
https://ninomiya-ew.co.jp/en/product/hrw_ni-ms500/

NI-MS500 5.5SQ

CABLE SHOP NISHO JAPAN — 2026-05-26T10:24:37+09:00

■Manufacturer's website
https://ninomiya-ew.co.jp/en/product/hrw_ni-ms500/

NI-MS500 3.5SQ

CABLE SHOP NISHO JAPAN — 2026-05-26T10:24:37+09:00

■Manufacturer's website
https://ninomiya-ew.co.jp/en/product/hrw_ni-ms500/

NI-MS500 2SQ

CABLE SHOP NISHO JAPAN — 2026-05-26T10:24:37+09:00

■Manufacturer's website
https://ninomiya-ew.co.jp/en/product/hrw_ni-ms500/

NI-MS500 1.25SQ

CABLE SHOP NISHO JAPAN — 2026-05-26T10:24:37+09:00

■Manufacturer's website
https://ninomiya-ew.co.jp/en/product/hrw_ni-ms500/

NI-MS500 0.75SQ

CABLE SHOP NISHO JAPAN — 2026-05-26T10:24:37+09:00

■Manufacturer's website
https://ninomiya-ew.co.jp/en/product/hrw_ni-ms500/

ORP-30F 24AWG×2C(SB)(21103)

CABLE SHOP NISHO JAPAN — 2026-05-25T15:49:42+09:00

■Oki Electric Cable Co., Ltd．

■ORP-30F Multi Core type With shielding(SB)
　Ultrafine Diameter Robot Cable
　UL758 Style 21103(105°C 30V)

■Sales unit：10m Units　　　
　Please purchase in multiples of 10m.

■L/T：1〜2Weeks
　　If not in stock, L/T is 1〜2 months.

■Oki Electric Cable Web Site
https://www.okidensen.co.jp/en/prod/cable/robot/orp30f.html

ORP-30F 26AWG×2C(SB)(21103)

CABLE SHOP NISHO JAPAN — 2026-05-25T15:49:42+09:00

ORP-30F 28AWG×2C(SB)(21103)

CABLE SHOP NISHO JAPAN — 2026-05-25T15:49:42+09:00

ORP-30F 30AWG×2C(SB)(21103)

CABLE SHOP NISHO JAPAN — 2026-05-25T15:49:42+09:00

ORP-30F 24AWG×5C(21103)

CABLE SHOP NISHO JAPAN — 2026-05-25T15:41:53+09:00

■Oki Electric Cable Co., Ltd．

■ORP-30F Multi Core type Without shielding
　Ultrafine Diameter Robot Cable
　UL758 Style 21103(105°C 30V)

■Sales unit：10m Units　　　
　Please purchase in multiples of 10m.

■L/T：1〜2Weeks
　　If not in stock, L/T is 1〜2 months.

■Oki Electric Cable Web Site
https://www.okidensen.co.jp/en/prod/cable/robot/orp30f.html

ORP-30F 24AWG×4C(21103)

CABLE SHOP NISHO JAPAN — 2026-05-25T15:41:53+09:00

ORP-30F 24AWG×3C(21103)

CABLE SHOP NISHO JAPAN — 2026-05-25T15:41:53+09:00

ORP-30F 26AWG×5C(21103)

CABLE SHOP NISHO JAPAN — 2026-05-25T15:41:53+09:00

ORP-30F 26AWG×4C(21103)

CABLE SHOP NISHO JAPAN — 2026-05-25T15:41:53+09:00

ORP-30F 26AWG×3C(21103)

CABLE SHOP NISHO JAPAN — 2026-05-25T15:41:53+09:00

ORP-30F 28AWG×5C(21103)

CABLE SHOP NISHO JAPAN — 2026-05-25T15:41:53+09:00

ORP-30F 28AWG×4C(21103)

CABLE SHOP NISHO JAPAN — 2026-05-25T15:41:53+09:00

ORP-30F 28AWG×3C(21103)

CABLE SHOP NISHO JAPAN — 2026-05-25T15:41:53+09:00

ORP-30F 30AWG×5C(21103)

CABLE SHOP NISHO JAPAN — 2026-05-25T15:41:53+09:00

ORP-30F 30AWG×4C(21103)

CABLE SHOP NISHO JAPAN — 2026-05-25T15:41:53+09:00

ORP-30F 30AWG×3C(21103)

CABLE SHOP NISHO JAPAN — 2026-05-25T15:41:53+09:00

ORP-30F 24AWG×5P(21103)

CABLE SHOP NISHO JAPAN — 2026-05-25T15:33:19+09:00

■Oki Electric Cable Co., Ltd．

■ORP-30F Twisted-pair type Without shielding
　Ultrafine Diameter Robot Cable
　UL758 Style 21103(105°C 30V)

■Sales unit：10m Units　　　
　Please purchase in multiples of 10m.

■L/T：1〜2Weeks
　　If not in stock, L/T is 1〜2 months.

■Oki Electric Cable Web Site
https://www.okidensen.co.jp/en/prod/cable/robot/orp30f.html

ORP-30F 24AWG×4P(21103)

CABLE SHOP NISHO JAPAN — 2026-05-25T15:33:19+09:00

ORP-30F 24AWG×3P(21103)

CABLE SHOP NISHO JAPAN — 2026-05-25T15:33:19+09:00

ORP-30F 26AWG×5P(21103)

CABLE SHOP NISHO JAPAN — 2026-05-25T15:33:19+09:00

ORP-30F 26AWG×4P(21103)

CABLE SHOP NISHO JAPAN — 2026-05-25T15:33:19+09:00

ORP-30F 26AWG×3P(21103)

CABLE SHOP NISHO JAPAN — 2026-05-25T15:33:19+09:00

ORP-30F 28AWG×5P(21103)

CABLE SHOP NISHO JAPAN — 2026-05-25T15:33:19+09:00

ORP-30F 28AWG×4P(21103)

CABLE SHOP NISHO JAPAN — 2026-05-25T15:33:19+09:00

ORP-30F 28AWG×3P(21103)

CABLE SHOP NISHO JAPAN — 2026-05-25T15:33:19+09:00

ORP-30F 30AWG×5P(21103)

CABLE SHOP NISHO JAPAN — 2026-05-25T15:33:19+09:00

ORP-30F 30AWG×4P(21103)

CABLE SHOP NISHO JAPAN — 2026-05-25T15:33:19+09:00

ORP-30F 30AWG×3P(21103)

CABLE SHOP NISHO JAPAN — 2026-05-25T15:33:19+09:00

ORP-30F 24AWG×20P(SB)(21103)
